Documentation for CIDX eChemical Standard
Definition Type: Element
Name: PriceStructure
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Type: nsA:PriceStructureType
Containing Schema: CIDX_CeS_v4.0_Message_CustomerSpecificCatalogUpdate.xsd
Abstract
Documentation:
Structure containing information used to specify the pricing for a line item, product or offering.

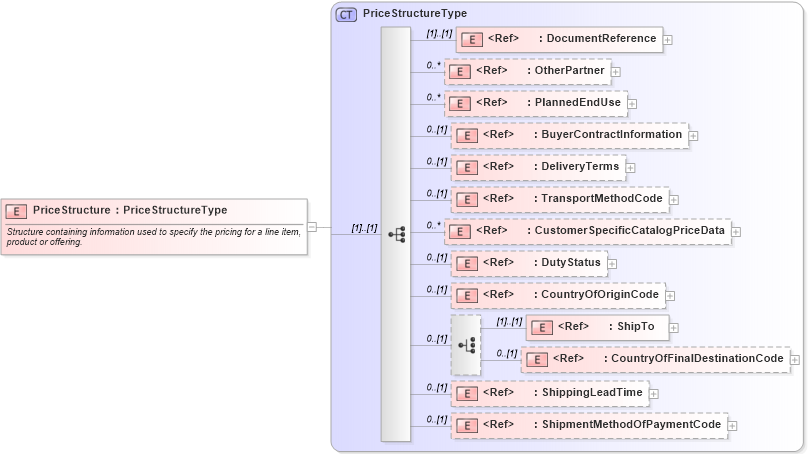

Collapse XSD Schema Diagram:
Drilldown into ShipmentMethodOfPaymentCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShippingLeadTime in schema cidx_ces_v4_0_message_customerspecificcatalogupdate_xsd Drilldown into CountryOfFinalDestinationCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipTo in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into CountryOfOriginCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DutyStatus in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into CustomerSpecificCatalogPriceData in schema cidx_ces_v4_0_message_customerspecificcatalogupdate_xsd Drilldown into TransportMethodCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DeliveryTerms in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into BuyerContractInformation in schema cidx_ces_v4_0_message_customerspecificcatalogupdate_xsd Drilldown into PlannedEndUse in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into OtherPartner in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DocumentReference in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PriceStructureType in schema cidx_ces_v4_0_message_customerspecificcatalogupdate_xsdXSD Diagram of PriceStructure in schema cidx_ces_v4_0_message_customerspecificcatalogupdate_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="PriceStructure" type="PriceStructureType">
    <xsd:annotation>
        <xsd:documentation>
            <Documentation>
                <Description>Structure containing information used to specify the pricing for a line item, product or offering.</Description>
            </Documentation>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentReference nsA:DocumentReference (1) (1)
OtherPartner nsA:OtherPartner 0 unbounded
PlannedEndUse nsA:PlannedEndUse 0 unbounded
BuyerContractInformation nsA:BuyerContractInformation 0 (1)
DeliveryTerms nsA:DeliveryTerms 0 (1)
TransportMethodCode nsA:TransportMethodCode 0 (1)
CustomerSpecificCatalogPriceData nsA:CustomerSpecificCatalogPriceData 0 unbounded
DutyStatus nsA:DutyStatus 0 (1)
CountryOfOriginCode nsA:CountryOfOriginCode 0 (1)
ShipTo nsA:ShipTo (1) (1)
CountryOfFinalDestinationCode nsA:CountryOfFinalDestinationCode 0 (1)
ShippingLeadTime nsA:ShippingLeadTime 0 (1)
ShipmentMethodOfPaymentCode nsA:ShipmentMethodOfPaymentCode 0 (1)
Collapse Derivation Tree:
