Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: ProductCatalogUpdateProductLineItemType
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Containing Schema: CIDX_CeS_v4.0_Message_ProductCatalogUpdate.xsd
Abstract

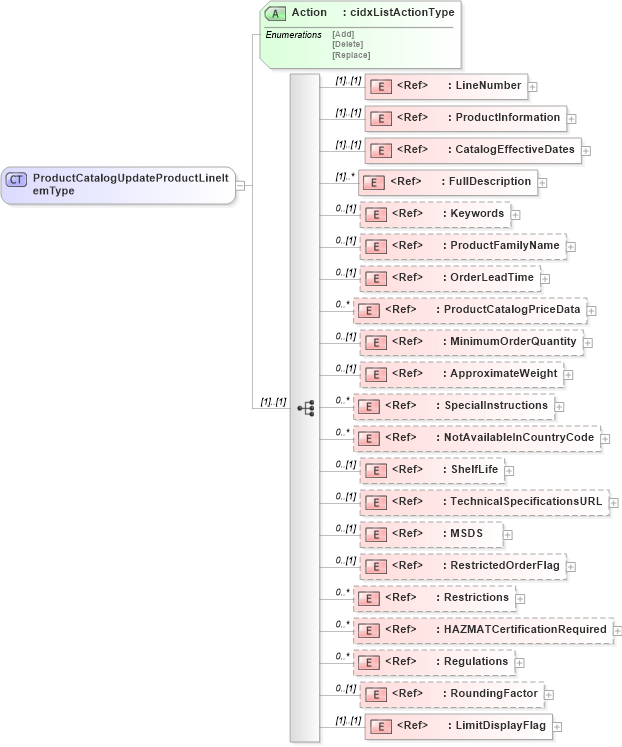

Collapse XSD Schema Diagram:
Drilldown into LimitDisplayFlag in schema cidx_ces_v4_0_message_productcatalogupdate_xsd Drilldown into RoundingFactor in schema cidx_ces_v4_0_message_productcatalogupdate_xsd Drilldown into Regulations in schema cidx_ces_v4_0_message_productcatalogupdate_xsd Drilldown into HAZMATCertificationRequired in schema cidx_ces_v4_0_message_productcatalogupdate_xsd Drilldown into Restrictions in schema cidx_ces_v4_0_message_productcatalogupdate_xsd Drilldown into RestrictedOrderFlag in schema cidx_ces_v4_0_message_productcatalogupdate_xsd Drilldown into MSDS in schema cidx_ces_v4_0_message_productcatalogupdate_xsd Drilldown into TechnicalSpecificationsURL in schema cidx_ces_v4_0_message_productcatalogupdate_xsd Drilldown into ShelfLife in schema cidx_ces_v4_0_message_productcatalogupdate_xsd Drilldown into NotAvailableInCountryCode in schema cidx_ces_v4_0_message_productcatalogupdate_xsd Drilldown into SpecialInstructions in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ApproximateWeight in schema cidx_ces_v4_0_message_productcatalogupdate_xsd Drilldown into MinimumOrderQuantity in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ProductCatalogPriceData in schema cidx_ces_v4_0_message_productcatalogupdate_xsd Drilldown into OrderLeadTime in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ProductFamilyName in schema cidx_ces_v4_0_message_productcatalogupdate_xsd Drilldown into Keywords in schema cidx_ces_v4_0_message_productcatalogupdate_xsd Drilldown into FullDescription in schema cidx_ces_v4_0_message_productcatalogupdate_xsd Drilldown into CatalogEffectiveDates in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ProductInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LineNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into Action in schema cidx_ces_v4_0_message_productcatalogupdate_xsdXSD Diagram of ProductCatalogUpdateProductLineItemType in schema cidx_ces_v4_0_message_productcatalogupdate_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="ProductCatalogUpdateProductLineItemType">
    <xsd:sequence>
        <xsd:element ref="LineNumber" />
        <xsd:element ref="ProductInformation" />
        <xsd:element ref="CatalogEffectiveDates" />
        <xsd:element ref="FullDescription" maxOccurs="unbounded" />
        <xsd:element ref="Keywords" minOccurs="0" />
        <xsd:element ref="ProductFamilyName" minOccurs="0" />
        <xsd:element ref="OrderLeadTime" minOccurs="0" />
        <xsd:element ref="ProductCatalogPriceData" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="MinimumOrderQuantity" minOccurs="0" />
        <xsd:element ref="ApproximateWeight" minOccurs="0" />
        <xsd:element ref="SpecialInstructions" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="NotAvailableInCountryCode" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ShelfLife" minOccurs="0" />
        <xsd:element ref="TechnicalSpecificationsURL" minOccurs="0" />
        <xsd:element ref="MSDS" minOccurs="0" />
        <xsd:element ref="RestrictedOrderFlag" minOccurs="0" />
        <xsd:element ref="Restrictions" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="HAZMATCertificationRequired" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Regulations" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RoundingFactor" minOccurs="0" />
        <xsd:element ref="LimitDisplayFlag" />
    </xsd:sequence>
    <xsd:attribute name="Action" type="cidxListActionType" use="required" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber (1) (1)
ProductInformation nsA:ProductInformation (1) (1)
CatalogEffectiveDates nsA:CatalogEffectiveDates (1) (1)
FullDescription nsA:FullDescription (1) unbounded
Keywords nsA:Keywords 0 (1)
ProductFamilyName nsA:ProductFamilyName 0 (1)
OrderLeadTime nsA:OrderLeadTime 0 (1)
ProductCatalogPriceData nsA:ProductCatalogPriceData 0 unbounded
MinimumOrderQuantity nsA:MinimumOrderQuantity 0 (1)
ApproximateWeight nsA:ApproximateWeight 0 (1)
SpecialInstructions nsA:SpecialInstructions 0 unbounded
NotAvailableInCountryCode nsA:NotAvailableInCountryCode 0 unbounded
ShelfLife nsA:ShelfLife 0 (1)
TechnicalSpecificationsURL nsA:TechnicalSpecificationsURL 0 (1)
MSDS nsA:MSDS 0 (1)
RestrictedOrderFlag nsA:RestrictedOrderFlag 0 (1)
Restrictions nsA:Restrictions 0 unbounded
HAZMATCertificationRequired nsA:HAZMATCertificationRequired 0 unbounded
Regulations nsA:Regulations 0 unbounded
RoundingFactor nsA:RoundingFactor 0 (1)
LimitDisplayFlag nsA:LimitDisplayFlag (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Action nsA:Action Required
Collapse Derivation Tree:
Collapse References:
nsA:ProductCatalogUpdateProductLineItem
