Documentation for CIDX eChemical Standard
Definition Type: Element
Name: ShipNoticeProductLineItem
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Type: nsA:ShipNoticeProductLineItemType
Containing Schema: CIDX_CeS_v4.0_Message_ShipNotice.xsd
Abstract
Documentation:
Individual products per line number on a document.

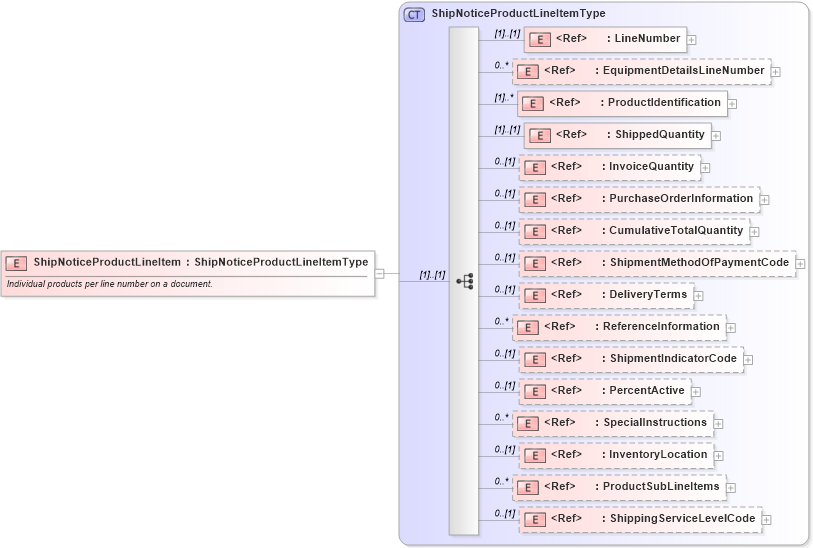

Collapse XSD Schema Diagram:
Drilldown into ShippingServiceLevelCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ProductSubLineItems in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into InventoryLocation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SpecialInstructions in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PercentActive in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipmentIndicatorCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ReferenceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DeliveryTerms in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipmentMethodOfPaymentCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into CumulativeTotalQuantity in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PurchaseOrderInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into InvoiceQuantity in schema cidx_ces_v4_0_message_shipnotice_xsd Drilldown into ShippedQuantity in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ProductIdentification in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into EquipmentDetailsLineNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LineNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipNoticeProductLineItemType in schema cidx_ces_v4_0_message_shipnotice_xsdXSD Diagram of ShipNoticeProductLineItem in schema cidx_ces_v4_0_message_shipnotice_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="ShipNoticeProductLineItem" type="ShipNoticeProductLineItemType">
    <xsd:annotation>
        <xsd:documentation>
            <Documentation>
                <Description>Individual products per line number on a document.</Description>
            </Documentation>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber (1) (1)
EquipmentDetailsLineNumber nsA:EquipmentDetailsLineNumber 0 unbounded
ProductIdentification nsA:ProductIdentification (1) unbounded
ShippedQuantity nsA:ShippedQuantity (1) (1)
InvoiceQuantity nsA:InvoiceQuantity 0 (1)
PurchaseOrderInformation nsA:PurchaseOrderInformation 0 (1)
CumulativeTotalQuantity nsA:CumulativeTotalQuantity 0 (1)
ShipmentMethodOfPaymentCode nsA:ShipmentMethodOfPaymentCode 0 (1)
DeliveryTerms nsA:DeliveryTerms 0 (1)
ReferenceInformation nsA:ReferenceInformation 0 unbounded
ShipmentIndicatorCode nsA:ShipmentIndicatorCode 0 (1)
PercentActive nsA:PercentActive 0 (1)
SpecialInstructions nsA:SpecialInstructions 0 unbounded
InventoryLocation nsA:InventoryLocation 0 (1)
ProductSubLineItems nsA:ProductSubLineItems 0 unbounded
ShippingServiceLevelCode nsA:ShippingServiceLevelCode 0 (1)
Collapse Derivation Tree:
