Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: ShipNoticePropertiesType
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Containing Schema: CIDX_CeS_v4.0_Message_ShipNotice.xsd
Abstract

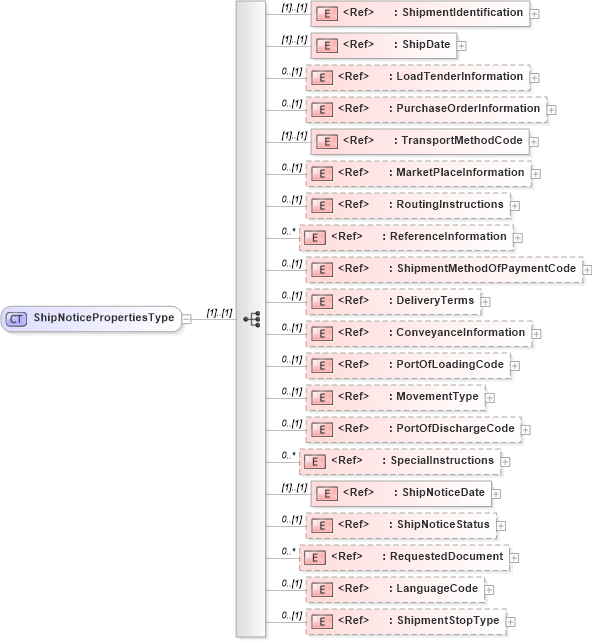

Collapse XSD Schema Diagram:
Drilldown into ShipmentStopType in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LanguageCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into RequestedDocument in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipNoticeStatus in schema cidx_ces_v4_0_message_shipnotice_xsd Drilldown into ShipNoticeDate in schema cidx_ces_v4_0_message_shipnotice_xsd Drilldown into SpecialInstructions in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PortOfDischargeCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into MovementType in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PortOfLoadingCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ConveyanceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DeliveryTerms in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipmentMethodOfPaymentCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ReferenceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into RoutingInstructions in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into MarketPlaceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into TransportMethodCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PurchaseOrderInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LoadTenderInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipDate in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipmentIdentification in schema cidx_ces_v4_0_commoncomponents_xsdXSD Diagram of ShipNoticePropertiesType in schema cidx_ces_v4_0_message_shipnotice_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="ShipNoticePropertiesType">
    <xsd:sequence>
        <xsd:element ref="ShipmentIdentification" />
        <xsd:element ref="ShipDate" />
        <xsd:element ref="LoadTenderInformation" minOccurs="0" />
        <xsd:element ref="PurchaseOrderInformation" minOccurs="0" />
        <xsd:element ref="TransportMethodCode" />
        <xsd:element ref="MarketPlaceInformation" minOccurs="0" />
        <xsd:element ref="RoutingInstructions" minOccurs="0" />
        <xsd:element ref="ReferenceInformation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ShipmentMethodOfPaymentCode" minOccurs="0" />
        <xsd:element ref="DeliveryTerms" minOccurs="0" />
        <xsd:element ref="ConveyanceInformation" minOccurs="0" />
        <xsd:element ref="PortOfLoadingCode" minOccurs="0" />
        <xsd:element ref="MovementType" minOccurs="0" />
        <xsd:element ref="PortOfDischargeCode" minOccurs="0" />
        <xsd:element ref="SpecialInstructions" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ShipNoticeDate" />
        <xsd:element ref="ShipNoticeStatus" minOccurs="0" />
        <xsd:element ref="RequestedDocument" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="LanguageCode" minOccurs="0" />
        <xsd:element ref="ShipmentStopType" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ShipmentIdentification nsA:ShipmentIdentification (1) (1)
ShipDate nsA:ShipDate (1) (1)
LoadTenderInformation nsA:LoadTenderInformation 0 (1)
PurchaseOrderInformation nsA:PurchaseOrderInformation 0 (1)
TransportMethodCode nsA:TransportMethodCode (1) (1)
MarketPlaceInformation nsA:MarketPlaceInformation 0 (1)
RoutingInstructions nsA:RoutingInstructions 0 (1)
ReferenceInformation nsA:ReferenceInformation 0 unbounded
ShipmentMethodOfPaymentCode nsA:ShipmentMethodOfPaymentCode 0 (1)
DeliveryTerms nsA:DeliveryTerms 0 (1)
ConveyanceInformation nsA:ConveyanceInformation 0 (1)
PortOfLoadingCode nsA:PortOfLoadingCode 0 (1)
MovementType nsA:MovementType 0 (1)
PortOfDischargeCode nsA:PortOfDischargeCode 0 (1)
SpecialInstructions nsA:SpecialInstructions 0 unbounded
ShipNoticeDate nsA:ShipNoticeDate (1) (1)
ShipNoticeStatus nsA:ShipNoticeStatus 0 (1)
RequestedDocument nsA:RequestedDocument 0 unbounded
LanguageCode nsA:LanguageCode 0 (1)
ShipmentStopType nsA:ShipmentStopType 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:ShipNoticeProperties
