Documentation for CIDX eChemical Standard
Definition Type: Element
Name: SupportedProduct
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Type: nsA:SupportedProductType
Containing Schema: CIDX_CeS_v4.0_CommonComponents.xsd
Abstract
Documentation:
The product for which a cost support is being requested.

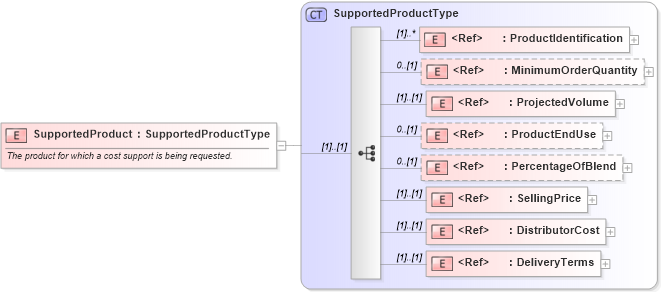

Collapse XSD Schema Diagram:
Drilldown into DeliveryTerms in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DistributorCost in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SellingPrice in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PercentageOfBlend in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ProductEndUse in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ProjectedVolume in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into MinimumOrderQuantity in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ProductIdentification in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SupportedProductType in schema cidx_ces_v4_0_commoncomponents_xsdXSD Diagram of SupportedProduct in schema cidx_ces_v4_0_commoncomponents_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="SupportedProduct" type="SupportedProductType">
    <xsd:annotation>
        <xsd:documentation>
            <Documentation>
                <Description>The product for which a cost support is being requested.</Description>
            </Documentation>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProductIdentification nsA:ProductIdentification (1) unbounded
MinimumOrderQuantity nsA:MinimumOrderQuantity 0 (1)
ProjectedVolume nsA:ProjectedVolume (1) (1)
ProductEndUse nsA:ProductEndUse 0 (1)
PercentageOfBlend nsA:PercentageOfBlend 0 (1)
SellingPrice nsA:SellingPrice (1) (1)
DistributorCost nsA:DistributorCost (1) (1)
DeliveryTerms nsA:DeliveryTerms (1) (1)
Collapse Derivation Tree:
