Documentation for CIDX eChemical Standard
Definition Type: Element
Name: SupportedSales
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Type: nsA:SupportedSalesType
Containing Schema: CIDX_CeS_v4.0_Message_CostSupportCreditRequest.xsd
Abstract
Documentation:
Structure that defines sales to a customer that qualify for cost support.

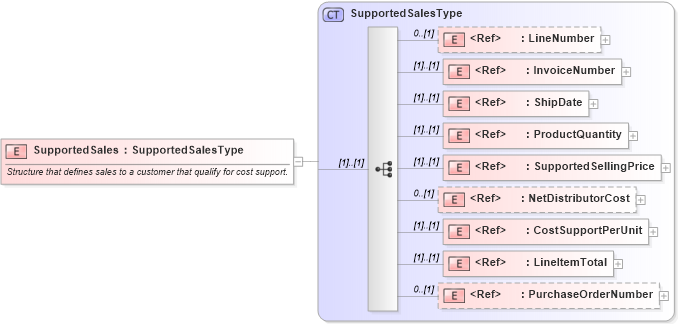

Collapse XSD Schema Diagram:
Drilldown into PurchaseOrderNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LineItemTotal in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into CostSupportPerUnit in schema cidx_ces_v4_0_message_costsupportcreditrequest_xsd Drilldown into NetDistributorCost in schema cidx_ces_v4_0_message_costsupportcreditrequest_xsd Drilldown into SupportedSellingPrice in schema cidx_ces_v4_0_message_costsupportcreditrequest_xsd Drilldown into ProductQuantity in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipDate in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into InvoiceNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LineNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SupportedSalesType in schema cidx_ces_v4_0_message_costsupportcreditrequest_xsdXSD Diagram of SupportedSales in schema cidx_ces_v4_0_message_costsupportcreditrequest_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="SupportedSales" type="SupportedSalesType">
    <xsd:annotation>
        <xsd:documentation>
            <Documentation>
                <Description>Structure that defines sales to a customer that qualify for cost support.</Description>
            </Documentation>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
InvoiceNumber nsA:InvoiceNumber (1) (1)
ShipDate nsA:ShipDate (1) (1)
ProductQuantity nsA:ProductQuantity (1) (1)
SupportedSellingPrice nsA:SupportedSellingPrice (1) (1)
NetDistributorCost nsA:NetDistributorCost 0 (1)
CostSupportPerUnit nsA:CostSupportPerUnit (1) (1)
LineItemTotal nsA:LineItemTotal (1) (1)
PurchaseOrderNumber nsA:PurchaseOrderNumber 0 (1)
Collapse Derivation Tree:
