Documentation for CIDX eChemical Standard
Definition Type: Element
Name: TransportInformation
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Type: nsA:TransportInformationType
Containing Schema: CIDX_CeS_v4.0_CommonComponents.xsd
Abstract
Documentation:
Collection of business properties defining how product is transported

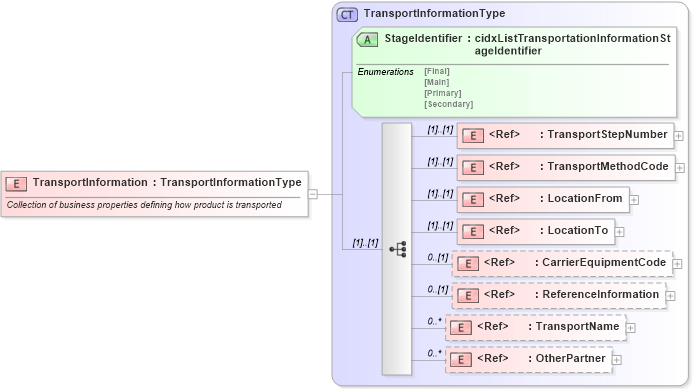

Collapse XSD Schema Diagram:
Drilldown into OtherPartner in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into TransportName in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ReferenceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into CarrierEquipmentCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LocationTo in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LocationFrom in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into TransportMethodCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into TransportStepNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into StageIdentifier in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into TransportInformationType in schema cidx_ces_v4_0_commoncomponents_xsdXSD Diagram of TransportInformation in schema cidx_ces_v4_0_commoncomponents_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="TransportInformation" type="TransportInformationType">
    <xsd:annotation>
        <xsd:documentation>
            <Documentation>
                <Description>Collection of business properties defining how product is transported</Description>
            </Documentation>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransportStepNumber nsA:TransportStepNumber (1) (1)
TransportMethodCode nsA:TransportMethodCode (1) (1)
LocationFrom nsA:LocationFrom (1) (1)
LocationTo nsA:LocationTo (1) (1)
CarrierEquipmentCode nsA:CarrierEquipmentCode 0 (1)
ReferenceInformation nsA:ReferenceInformation 0 (1)
TransportName nsA:TransportName 0 unbounded
OtherPartner nsA:OtherPartner 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
StageIdentifier nsA:StageIdentifier Required
Collapse Derivation Tree:
