Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: AcceptanceNotificationLineItemType
Namespace: urn:cidx:names:specification:ces:schema:all:5:0
Containing Schema: CIDX_5.0.xsd
Abstract

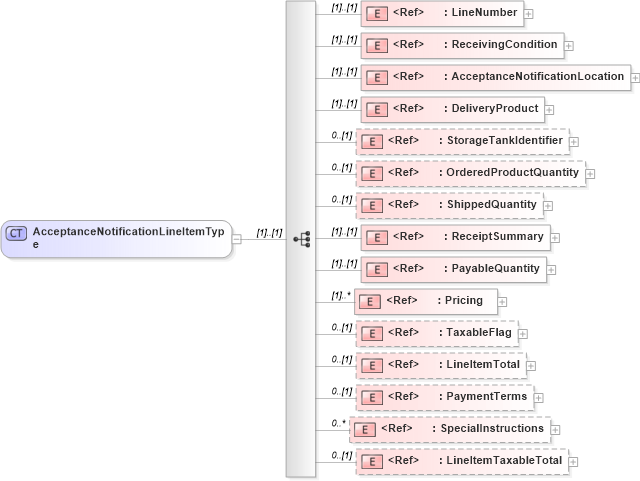

Collapse XSD Schema Diagram:
Drilldown into LineItemTaxableTotal in schema cidx_5_0_xsd Drilldown into SpecialInstructions in schema cidx_5_0_xsd Drilldown into PaymentTerms in schema cidx_5_0_xsd Drilldown into LineItemTotal in schema cidx_5_0_xsd Drilldown into TaxableFlag in schema cidx_5_0_xsd Drilldown into Pricing in schema cidx_5_0_xsd Drilldown into PayableQuantity in schema cidx_5_0_xsd Drilldown into ReceiptSummary in schema cidx_5_0_xsd Drilldown into ShippedQuantity in schema cidx_5_0_xsd Drilldown into OrderedProductQuantity in schema cidx_5_0_xsd Drilldown into StorageTankIdentifier in schema cidx_5_0_xsd Drilldown into DeliveryProduct in schema cidx_5_0_xsd Drilldown into AcceptanceNotificationLocation in schema cidx_5_0_xsd Drilldown into ReceivingCondition in schema cidx_5_0_xsd Drilldown into LineNumber in schema cidx_5_0_xsdXSD Diagram of AcceptanceNotificationLineItemType in schema cidx_5_0_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="AcceptanceNotificationLineItemType">
    <xsd:sequence>
        <xsd:element ref="LineNumber" />
        <xsd:element ref="ReceivingCondition" />
        <xsd:element ref="AcceptanceNotificationLocation" />
        <xsd:element ref="DeliveryProduct" />
        <xsd:element ref="StorageTankIdentifier" minOccurs="0" />
        <xsd:element ref="OrderedProductQuantity" minOccurs="0" />
        <xsd:element ref="ShippedQuantity" minOccurs="0" />
        <xsd:element ref="ReceiptSummary" />
        <xsd:element ref="PayableQuantity" />
        <xsd:element ref="Pricing" maxOccurs="unbounded" />
        <xsd:element ref="TaxableFlag" minOccurs="0" />
        <xsd:element ref="LineItemTotal" minOccurs="0" />
        <xsd:element ref="PaymentTerms" minOccurs="0" />
        <xsd:element ref="SpecialInstructions" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="LineItemTaxableTotal" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber (1) (1)
ReceivingCondition nsA:ReceivingCondition (1) (1)
AcceptanceNotificationLocation nsA:AcceptanceNotificationLocation (1) (1)
DeliveryProduct nsA:DeliveryProduct (1) (1)
StorageTankIdentifier nsA:StorageTankIdentifier 0 (1)
OrderedProductQuantity nsA:OrderedProductQuantity 0 (1)
ShippedQuantity nsA:ShippedQuantity 0 (1)
ReceiptSummary nsA:ReceiptSummary (1) (1)
PayableQuantity nsA:PayableQuantity (1) (1)
Pricing nsA:Pricing (1) unbounded
TaxableFlag nsA:TaxableFlag 0 (1)
LineItemTotal nsA:LineItemTotal 0 (1)
PaymentTerms nsA:PaymentTerms 0 (1)
SpecialInstructions nsA:SpecialInstructions 0 unbounded
LineItemTaxableTotal nsA:LineItemTaxableTotal 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:AcceptanceNotificationLineItem
