Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: ContractResponsePropertiesType
Namespace: urn:cidx:names:specification:ces:schema:all:5:0
Containing Schema: CIDX_5.0.xsd
Abstract

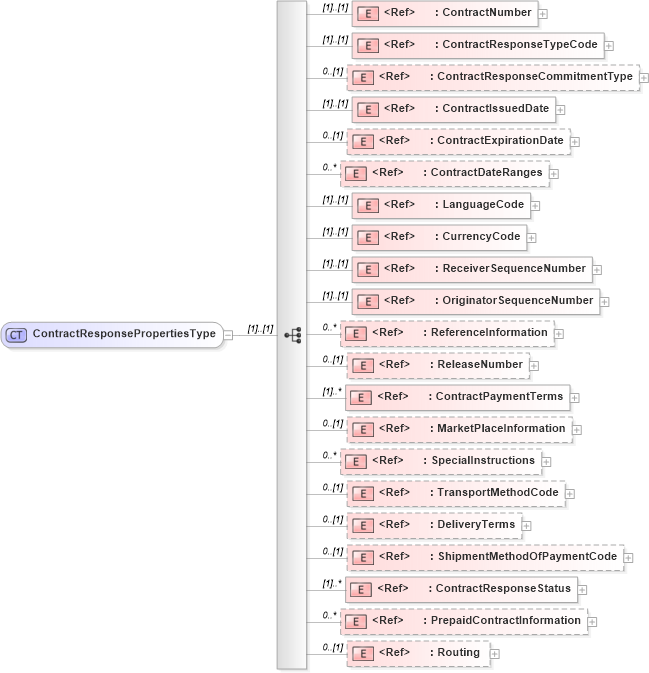

Collapse XSD Schema Diagram:
Drilldown into Routing in schema cidx_5_0_xsd Drilldown into PrepaidContractInformation in schema cidx_5_0_xsd Drilldown into ContractResponseStatus in schema cidx_5_0_xsd Drilldown into ShipmentMethodOfPaymentCode in schema cidx_5_0_xsd Drilldown into DeliveryTerms in schema cidx_5_0_xsd Drilldown into TransportMethodCode in schema cidx_5_0_xsd Drilldown into SpecialInstructions in schema cidx_5_0_xsd Drilldown into MarketPlaceInformation in schema cidx_5_0_xsd Drilldown into ContractPaymentTerms in schema cidx_5_0_xsd Drilldown into ReleaseNumber in schema cidx_5_0_xsd Drilldown into ReferenceInformation in schema cidx_5_0_xsd Drilldown into OriginatorSequenceNumber in schema cidx_5_0_xsd Drilldown into ReceiverSequenceNumber in schema cidx_5_0_xsd Drilldown into CurrencyCode in schema cidx_5_0_xsd Drilldown into LanguageCode in schema cidx_5_0_xsd Drilldown into ContractDateRanges in schema cidx_5_0_xsd Drilldown into ContractExpirationDate in schema cidx_5_0_xsd Drilldown into ContractIssuedDate in schema cidx_5_0_xsd Drilldown into ContractResponseCommitmentType in schema cidx_5_0_xsd Drilldown into ContractResponseTypeCode in schema cidx_5_0_xsd Drilldown into ContractNumber in schema cidx_5_0_xsdXSD Diagram of ContractResponsePropertiesType in schema cidx_5_0_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="ContractResponsePropertiesType">
    <xsd:sequence>
        <xsd:element ref="ContractNumber" />
        <xsd:element ref="ContractResponseTypeCode" />
        <xsd:element ref="ContractResponseCommitmentType" minOccurs="0" />
        <xsd:element ref="ContractIssuedDate" />
        <xsd:element ref="ContractExpirationDate" minOccurs="0" />
        <xsd:element ref="ContractDateRanges" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="LanguageCode" />
        <xsd:element ref="CurrencyCode" />
        <xsd:element ref="ReceiverSequenceNumber" />
        <xsd:element ref="OriginatorSequenceNumber" />
        <xsd:element ref="ReferenceInformation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ReleaseNumber" minOccurs="0" />
        <xsd:element ref="ContractPaymentTerms" maxOccurs="unbounded" />
        <xsd:element ref="MarketPlaceInformation" minOccurs="0" />
        <xsd:element ref="SpecialInstructions" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="TransportMethodCode" minOccurs="0" />
        <xsd:element ref="DeliveryTerms" minOccurs="0" />
        <xsd:element ref="ShipmentMethodOfPaymentCode" minOccurs="0" />
        <xsd:element ref="ContractResponseStatus" maxOccurs="unbounded" />
        <xsd:element ref="PrepaidContractInformation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Routing" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ContractNumber nsA:ContractNumber (1) (1)
ContractResponseTypeCode nsA:ContractResponseTypeCode (1) (1)
ContractResponseCommitmentType nsA:ContractResponseCommitmentType 0 (1)
ContractIssuedDate nsA:ContractIssuedDate (1) (1)
ContractExpirationDate nsA:ContractExpirationDate 0 (1)
ContractDateRanges nsA:ContractDateRanges 0 unbounded
LanguageCode nsA:LanguageCode (1) (1)
CurrencyCode nsA:CurrencyCode (1) (1)
ReceiverSequenceNumber nsA:ReceiverSequenceNumber (1) (1)
OriginatorSequenceNumber nsA:OriginatorSequenceNumber (1) (1)
ReferenceInformation nsA:ReferenceInformation 0 unbounded
ReleaseNumber nsA:ReleaseNumber 0 (1)
ContractPaymentTerms nsA:ContractPaymentTerms (1) unbounded
MarketPlaceInformation nsA:MarketPlaceInformation 0 (1)
SpecialInstructions nsA:SpecialInstructions 0 unbounded
TransportMethodCode nsA:TransportMethodCode 0 (1)
DeliveryTerms nsA:DeliveryTerms 0 (1)
ShipmentMethodOfPaymentCode nsA:ShipmentMethodOfPaymentCode 0 (1)
ContractResponseStatus nsA:ContractResponseStatus (1) unbounded
PrepaidContractInformation nsA:PrepaidContractInformation 0 unbounded
Routing nsA:Routing 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:ContractResponseProperties
