Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: CostSupportRequestChangeDetailsType
Namespace: urn:cidx:names:specification:ces:schema:all:5:0
Containing Schema: CIDX_5.0.xsd
Abstract

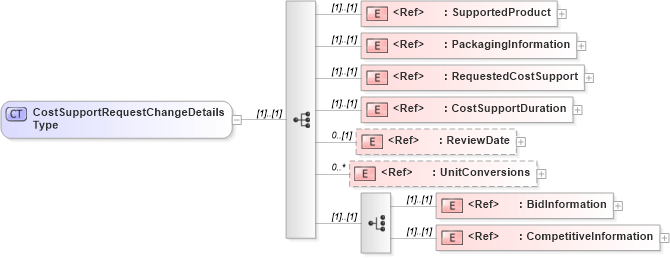

Collapse XSD Schema Diagram:
Drilldown into CompetitiveInformation in schema cidx_5_0_xsd Drilldown into BidInformation in schema cidx_5_0_xsd Drilldown into UnitConversions in schema cidx_5_0_xsd Drilldown into ReviewDate in schema cidx_5_0_xsd Drilldown into CostSupportDuration in schema cidx_5_0_xsd Drilldown into RequestedCostSupport in schema cidx_5_0_xsd Drilldown into PackagingInformation in schema cidx_5_0_xsd Drilldown into SupportedProduct in schema cidx_5_0_xsdXSD Diagram of CostSupportRequestChangeDetailsType in schema cidx_5_0_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="CostSupportRequestChangeDetailsType">
    <xsd:sequence>
        <xsd:element ref="SupportedProduct" />
        <xsd:element ref="PackagingInformation" />
        <xsd:element ref="RequestedCostSupport" />
        <xsd:element ref="CostSupportDuration" />
        <xsd:element ref="ReviewDate" minOccurs="0" />
        <xsd:element ref="UnitConversions" minOccurs="0" maxOccurs="unbounded" />
        <xsd:choice>
            <xsd:element ref="BidInformation" />
            <xsd:element ref="CompetitiveInformation" />
        </xsd:choice>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SupportedProduct nsA:SupportedProduct (1) (1)
PackagingInformation nsA:PackagingInformation (1) (1)
RequestedCostSupport nsA:RequestedCostSupport (1) (1)
CostSupportDuration nsA:CostSupportDuration (1) (1)
ReviewDate nsA:ReviewDate 0 (1)
UnitConversions nsA:UnitConversions 0 unbounded
BidInformation nsA:BidInformation (1) (1)
CompetitiveInformation nsA:CompetitiveInformation (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:CostSupportRequestChangeDetails
