Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: DocumentRecipientInformationType
Namespace: urn:cidx:names:specification:ces:schema:all:5:0
Containing Schema: CIDX_5.0.xsd
Abstract

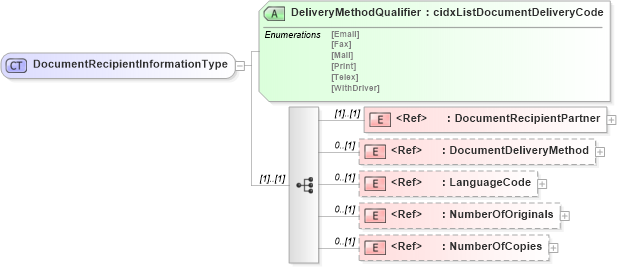

Collapse XSD Schema Diagram:
Drilldown into NumberOfCopies in schema cidx_5_0_xsd Drilldown into NumberOfOriginals in schema cidx_5_0_xsd Drilldown into LanguageCode in schema cidx_5_0_xsd Drilldown into DocumentDeliveryMethod in schema cidx_5_0_xsd Drilldown into DocumentRecipientPartner in schema cidx_5_0_xsd Drilldown into DeliveryMethodQualifier in schema cidx_5_0_xsdXSD Diagram of DocumentRecipientInformationType in schema cidx_5_0_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="DocumentRecipientInformationType">
    <xsd:sequence>
        <xsd:element ref="DocumentRecipientPartner" />
        <xsd:element ref="DocumentDeliveryMethod" minOccurs="0" />
        <xsd:element ref="LanguageCode" minOccurs="0" />
        <xsd:element ref="NumberOfOriginals" minOccurs="0" />
        <xsd:element ref="NumberOfCopies" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="DeliveryMethodQualifier" type="cidxListDocumentDeliveryCode" use="required" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentRecipientPartner nsA:DocumentRecipientPartner (1) (1)
DocumentDeliveryMethod nsA:DocumentDeliveryMethod 0 (1)
LanguageCode nsA:LanguageCode 0 (1)
NumberOfOriginals nsA:NumberOfOriginals 0 (1)
NumberOfCopies nsA:NumberOfCopies 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DeliveryMethodQualifier nsA:DeliveryMethodQualifier Required
Collapse Derivation Tree:
Collapse References:
nsA:DocumentRecipientInformation
