Definition Type: ComplexType
Name: IngredientType
Namespace: urn:cidx:names:specification:ces:schema:all:5:0
Containing Schema: CIDX_5.0.xsd
Abstract

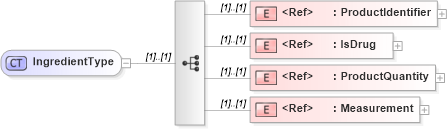

Collapse XSD Schema Diagram:
Drilldown into Measurement in schema cidx_5_0_xsd Drilldown into ProductQuantity in schema cidx_5_0_xsd Drilldown into IsDrug in schema cidx_5_0_xsd Drilldown into ProductIdentifier in schema cidx_5_0_xsdXSD Diagram of IngredientType in schema cidx_5_0_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="IngredientType">
    <xsd:sequence>
        <xsd:element ref="ProductIdentifier" />
        <xsd:element ref="IsDrug" />
        <xsd:element ref="ProductQuantity" />
        <xsd:element ref="Measurement" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProductIdentifier nsA:ProductIdentifier (1) (1)
IsDrug nsA:IsDrug (1) (1)
ProductQuantity nsA:ProductQuantity (1) (1)
Measurement nsA:Measurement (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:Ingredient
