Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: LoadTenderResponsePropertiesType
Namespace: urn:cidx:names:specification:ces:schema:all:5:0
Containing Schema: CIDX_5.0.xsd
Abstract

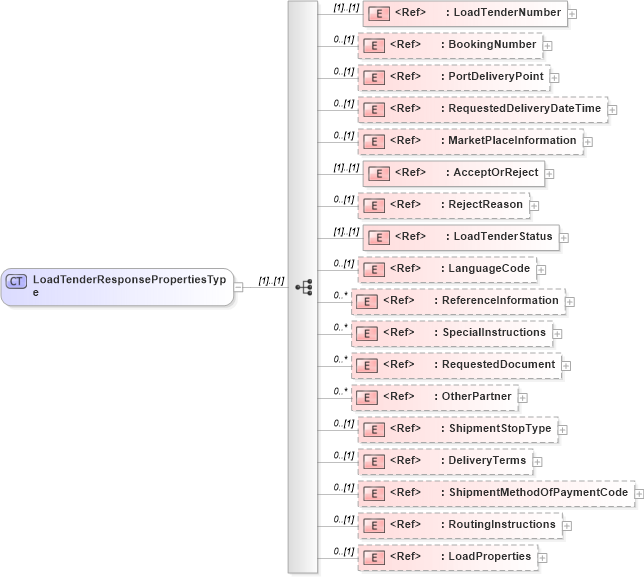

Collapse XSD Schema Diagram:
Drilldown into LoadProperties in schema cidx_5_0_xsd Drilldown into RoutingInstructions in schema cidx_5_0_xsd Drilldown into ShipmentMethodOfPaymentCode in schema cidx_5_0_xsd Drilldown into DeliveryTerms in schema cidx_5_0_xsd Drilldown into ShipmentStopType in schema cidx_5_0_xsd Drilldown into OtherPartner in schema cidx_5_0_xsd Drilldown into RequestedDocument in schema cidx_5_0_xsd Drilldown into SpecialInstructions in schema cidx_5_0_xsd Drilldown into ReferenceInformation in schema cidx_5_0_xsd Drilldown into LanguageCode in schema cidx_5_0_xsd Drilldown into LoadTenderStatus in schema cidx_5_0_xsd Drilldown into RejectReason in schema cidx_5_0_xsd Drilldown into AcceptOrReject in schema cidx_5_0_xsd Drilldown into MarketPlaceInformation in schema cidx_5_0_xsd Drilldown into RequestedDeliveryDateTime in schema cidx_5_0_xsd Drilldown into PortDeliveryPoint in schema cidx_5_0_xsd Drilldown into BookingNumber in schema cidx_5_0_xsd Drilldown into LoadTenderNumber in schema cidx_5_0_xsdXSD Diagram of LoadTenderResponsePropertiesType in schema cidx_5_0_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="LoadTenderResponsePropertiesType">
    <xsd:sequence>
        <xsd:element ref="LoadTenderNumber" />
        <xsd:element ref="BookingNumber" minOccurs="0" />
        <xsd:element ref="PortDeliveryPoint" minOccurs="0" />
        <xsd:element ref="RequestedDeliveryDateTime" minOccurs="0" />
        <xsd:element ref="MarketPlaceInformation" minOccurs="0" />
        <xsd:element ref="AcceptOrReject" />
        <xsd:element ref="RejectReason" minOccurs="0" />
        <xsd:element ref="LoadTenderStatus" />
        <xsd:element ref="LanguageCode" minOccurs="0" />
        <xsd:element ref="ReferenceInformation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SpecialInstructions" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RequestedDocument" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OtherPartner" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ShipmentStopType" minOccurs="0" />
        <xsd:element ref="DeliveryTerms" minOccurs="0" />
        <xsd:element ref="ShipmentMethodOfPaymentCode" minOccurs="0" />
        <xsd:element ref="RoutingInstructions" minOccurs="0" />
        <xsd:element ref="LoadProperties" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LoadTenderNumber nsA:LoadTenderNumber (1) (1)
BookingNumber nsA:BookingNumber 0 (1)
PortDeliveryPoint nsA:PortDeliveryPoint 0 (1)
RequestedDeliveryDateTime nsA:RequestedDeliveryDateTime 0 (1)
MarketPlaceInformation nsA:MarketPlaceInformation 0 (1)
AcceptOrReject nsA:AcceptOrReject (1) (1)
RejectReason nsA:RejectReason 0 (1)
LoadTenderStatus nsA:LoadTenderStatus (1) (1)
LanguageCode nsA:LanguageCode 0 (1)
ReferenceInformation nsA:ReferenceInformation 0 unbounded
SpecialInstructions nsA:SpecialInstructions 0 unbounded
RequestedDocument nsA:RequestedDocument 0 unbounded
OtherPartner nsA:OtherPartner 0 unbounded
ShipmentStopType nsA:ShipmentStopType 0 (1)
DeliveryTerms nsA:DeliveryTerms 0 (1)
ShipmentMethodOfPaymentCode nsA:ShipmentMethodOfPaymentCode 0 (1)
RoutingInstructions nsA:RoutingInstructions 0 (1)
LoadProperties nsA:LoadProperties 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:LoadTenderResponseProperties
