Documentation for CIDX eChemical Standard
Definition Type: Element
Name: OrderResponseProductLineItem
Namespace: urn:cidx:names:specification:ces:schema:all:5:0
Type: nsA:OrderResponseProductLineItemType
Containing Schema: CIDX_5.0.xsd
Abstract

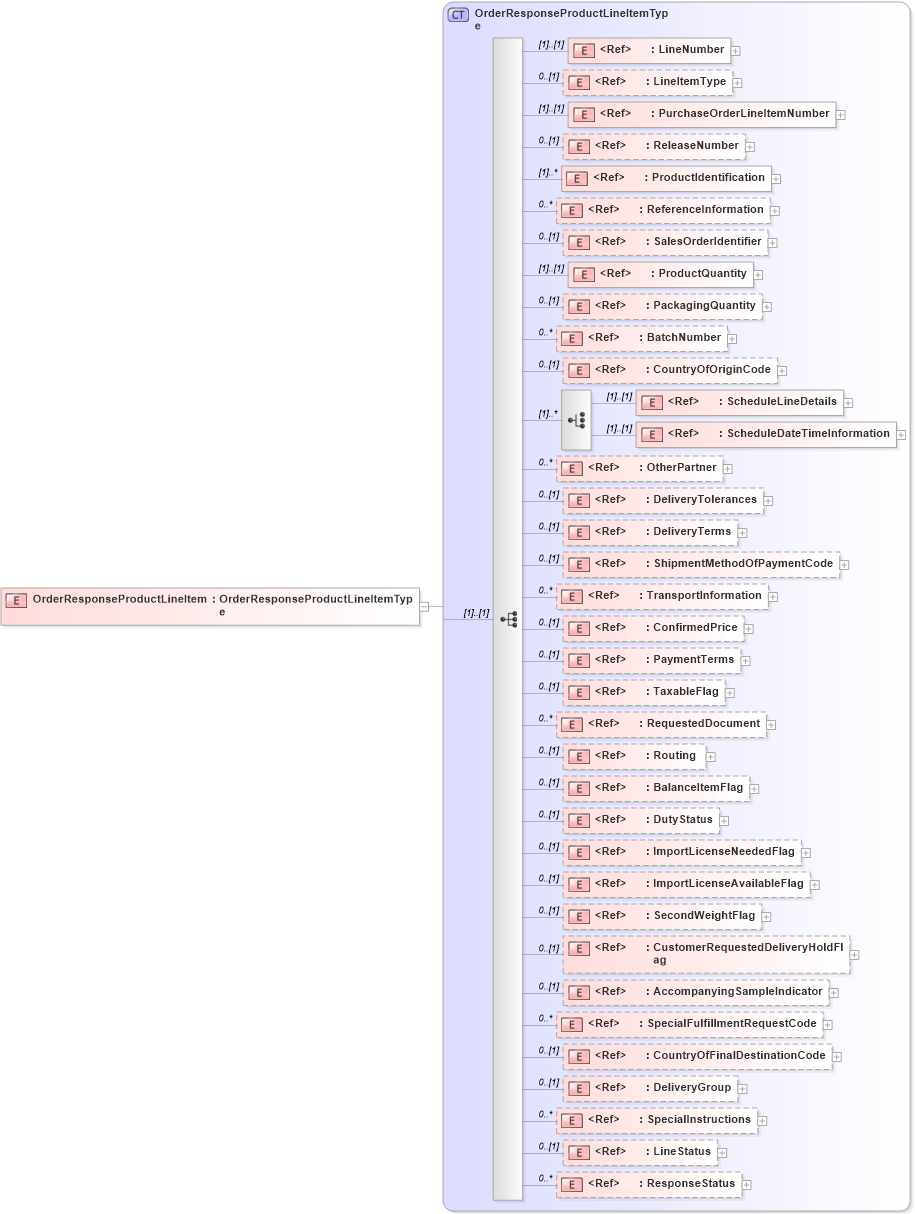

Collapse XSD Schema Diagram:
Drilldown into ResponseStatus in schema cidx_5_0_xsd Drilldown into LineStatus in schema cidx_5_0_xsd Drilldown into SpecialInstructions in schema cidx_5_0_xsd Drilldown into DeliveryGroup in schema cidx_5_0_xsd Drilldown into CountryOfFinalDestinationCode in schema cidx_5_0_xsd Drilldown into SpecialFulfillmentRequestCode in schema cidx_5_0_xsd Drilldown into AccompanyingSampleIndicator in schema cidx_5_0_xsd Drilldown into CustomerRequestedDeliveryHoldFlag in schema cidx_5_0_xsd Drilldown into SecondWeightFlag in schema cidx_5_0_xsd Drilldown into ImportLicenseAvailableFlag in schema cidx_5_0_xsd Drilldown into ImportLicenseNeededFlag in schema cidx_5_0_xsd Drilldown into DutyStatus in schema cidx_5_0_xsd Drilldown into BalanceItemFlag in schema cidx_5_0_xsd Drilldown into Routing in schema cidx_5_0_xsd Drilldown into RequestedDocument in schema cidx_5_0_xsd Drilldown into TaxableFlag in schema cidx_5_0_xsd Drilldown into PaymentTerms in schema cidx_5_0_xsd Drilldown into ConfirmedPrice in schema cidx_5_0_xsd Drilldown into TransportInformation in schema cidx_5_0_xsd Drilldown into ShipmentMethodOfPaymentCode in schema cidx_5_0_xsd Drilldown into DeliveryTerms in schema cidx_5_0_xsd Drilldown into DeliveryTolerances in schema cidx_5_0_xsd Drilldown into OtherPartner in schema cidx_5_0_xsd Drilldown into ScheduleDateTimeInformation in schema cidx_5_0_xsd Drilldown into ScheduleLineDetails in schema cidx_5_0_xsd Drilldown into CountryOfOriginCode in schema cidx_5_0_xsd Drilldown into BatchNumber in schema cidx_5_0_xsd Drilldown into PackagingQuantity in schema cidx_5_0_xsd Drilldown into ProductQuantity in schema cidx_5_0_xsd Drilldown into SalesOrderIdentifier in schema cidx_5_0_xsd Drilldown into ReferenceInformation in schema cidx_5_0_xsd Drilldown into ProductIdentification in schema cidx_5_0_xsd Drilldown into ReleaseNumber in schema cidx_5_0_xsd Drilldown into PurchaseOrderLineItemNumber in schema cidx_5_0_xsd Drilldown into LineItemType in schema cidx_5_0_xsd Drilldown into LineNumber in schema cidx_5_0_xsd Drilldown into OrderResponseProductLineItemType in schema cidx_5_0_xsdXSD Diagram of OrderResponseProductLineItem in schema cidx_5_0_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="OrderResponseProductLineItem" type="OrderResponseProductLineItemType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber (1) (1)
LineItemType nsA:LineItemType 0 (1)
PurchaseOrderLineItemNumber nsA:PurchaseOrderLineItemNumber (1) (1)
ReleaseNumber nsA:ReleaseNumber 0 (1)
ProductIdentification nsA:ProductIdentification (1) unbounded
ReferenceInformation nsA:ReferenceInformation 0 unbounded
SalesOrderIdentifier nsA:SalesOrderIdentifier 0 (1)
ProductQuantity nsA:ProductQuantity (1) (1)
PackagingQuantity nsA:PackagingQuantity 0 (1)
BatchNumber nsA:BatchNumber 0 unbounded
CountryOfOriginCode nsA:CountryOfOriginCode 0 (1)
ScheduleLineDetails nsA:ScheduleLineDetails (1) (1)
ScheduleDateTimeInformation nsA:ScheduleDateTimeInformation (1) (1)
OtherPartner nsA:OtherPartner 0 unbounded
DeliveryTolerances nsA:DeliveryTolerances 0 (1)
DeliveryTerms nsA:DeliveryTerms 0 (1)
ShipmentMethodOfPaymentCode nsA:ShipmentMethodOfPaymentCode 0 (1)
TransportInformation nsA:TransportInformation 0 unbounded
ConfirmedPrice nsA:ConfirmedPrice 0 (1)
PaymentTerms nsA:PaymentTerms 0 (1)
TaxableFlag nsA:TaxableFlag 0 (1)
RequestedDocument nsA:RequestedDocument 0 unbounded
Routing nsA:Routing 0 (1)
BalanceItemFlag nsA:BalanceItemFlag 0 (1)
DutyStatus nsA:DutyStatus 0 (1)
ImportLicenseNeededFlag nsA:ImportLicenseNeededFlag 0 (1)
ImportLicenseAvailableFlag nsA:ImportLicenseAvailableFlag 0 (1)
SecondWeightFlag nsA:SecondWeightFlag 0 (1)
CustomerRequestedDeliveryHoldFlag nsA:CustomerRequestedDeliveryHoldFlag 0 (1)
AccompanyingSampleIndicator nsA:AccompanyingSampleIndicator 0 (1)
SpecialFulfillmentRequestCode nsA:SpecialFulfillmentRequestCode 0 unbounded
CountryOfFinalDestinationCode nsA:CountryOfFinalDestinationCode 0 (1)
DeliveryGroup nsA:DeliveryGroup 0 (1)
SpecialInstructions nsA:SpecialInstructions 0 unbounded
LineStatus nsA:LineStatus 0 (1)
ResponseStatus nsA:ResponseStatus 0 unbounded
Collapse Derivation Tree:
