Definition Type: ComplexType
Name: OrderStatusRequestProductLineItemType
Namespace: urn:cidx:names:specification:ces:schema:all:5:0
Containing Schema: CIDX_5.0.xsd
Abstract

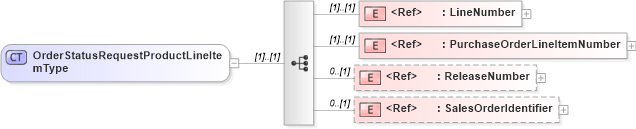

Collapse XSD Schema Diagram:
Drilldown into SalesOrderIdentifier in schema cidx_5_0_xsd Drilldown into ReleaseNumber in schema cidx_5_0_xsd Drilldown into PurchaseOrderLineItemNumber in schema cidx_5_0_xsd Drilldown into LineNumber in schema cidx_5_0_xsdXSD Diagram of OrderStatusRequestProductLineItemType in schema cidx_5_0_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="OrderStatusRequestProductLineItemType">
    <xsd:sequence>
        <xsd:element ref="LineNumber" />
        <xsd:element ref="PurchaseOrderLineItemNumber" />
        <xsd:element ref="ReleaseNumber" minOccurs="0" />
        <xsd:element ref="SalesOrderIdentifier" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber (1) (1)
PurchaseOrderLineItemNumber nsA:PurchaseOrderLineItemNumber (1) (1)
ReleaseNumber nsA:ReleaseNumber 0 (1)
SalesOrderIdentifier nsA:SalesOrderIdentifier 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:OrderStatusRequestProductLineItem
