Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: ProductInformationType
Namespace: urn:cidx:names:specification:ces:schema:all:5:0
Containing Schema: CIDX_5.0.xsd
Abstract
Collapse XSD Schema Diagram:

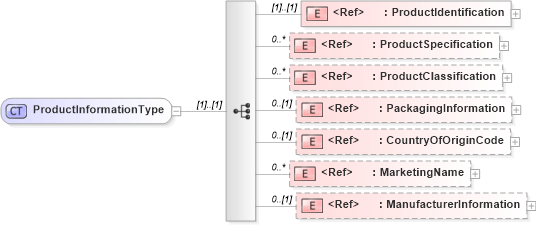

Drilldown into ManufacturerInformation in schema cidx_5_0_xsd Drilldown into MarketingName in schema cidx_5_0_xsd Drilldown into CountryOfOriginCode in schema cidx_5_0_xsd Drilldown into PackagingInformation in schema cidx_5_0_xsd Drilldown into ProductClassification in schema cidx_5_0_xsd Drilldown into ProductSpecification in schema cidx_5_0_xsd Drilldown into ProductIdentification in schema cidx_5_0_xsdXSD Diagram of ProductInformationType in schema cidx_5_0_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="ProductInformationType">
    <xsd:sequence>
        <xsd:element ref="ProductIdentification" />
        <xsd:element ref="ProductSpecification" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ProductClassification" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PackagingInformation" minOccurs="0" />
        <xsd:element ref="CountryOfOriginCode" minOccurs="0" />
        <xsd:element ref="MarketingName" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ManufacturerInformation" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProductIdentification nsA:ProductIdentification (1) (1)
ProductSpecification nsA:ProductSpecification 0 unbounded
ProductClassification nsA:ProductClassification 0 unbounded
PackagingInformation nsA:PackagingInformation 0 (1)
CountryOfOriginCode nsA:CountryOfOriginCode 0 (1)
MarketingName nsA:MarketingName 0 unbounded
ManufacturerInformation nsA:ManufacturerInformation 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:ProductInformation
