Definition Type: ComplexType
Name: QuantitativeResultType
Namespace: urn:cidx:names:specification:ces:schema:all:5:0
Containing Schema: CIDX_5.0.xsd
Abstract

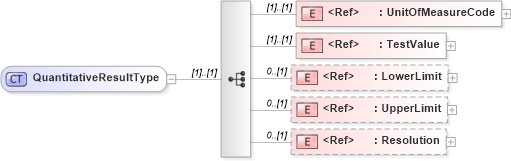

Collapse XSD Schema Diagram:
Drilldown into Resolution in schema cidx_5_0_xsd Drilldown into UpperLimit in schema cidx_5_0_xsd Drilldown into LowerLimit in schema cidx_5_0_xsd Drilldown into TestValue in schema cidx_5_0_xsd Drilldown into UnitOfMeasureCode in schema cidx_5_0_xsdXSD Diagram of QuantitativeResultType in schema cidx_5_0_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="QuantitativeResultType">
    <xsd:sequence>
        <xsd:element ref="UnitOfMeasureCode" />
        <xsd:element ref="TestValue" />
        <xsd:element ref="LowerLimit" minOccurs="0" />
        <xsd:element ref="UpperLimit" minOccurs="0" />
        <xsd:element ref="Resolution" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UnitOfMeasureCode nsA:UnitOfMeasureCode (1) (1)
TestValue nsA:TestValue (1) (1)
LowerLimit nsA:LowerLimit 0 (1)
UpperLimit nsA:UpperLimit 0 (1)
Resolution nsA:Resolution 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:QuantitativeResult
