Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: RateBasisType
Namespace: urn:cidx:names:specification:ces:schema:all:5:0
Containing Schema: CIDX_5.0.xsd
Abstract

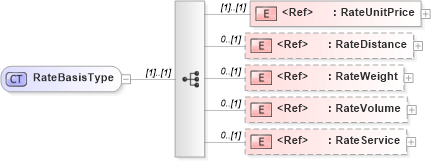

Collapse XSD Schema Diagram:
Drilldown into RateService in schema cidx_5_0_xsd Drilldown into RateVolume in schema cidx_5_0_xsd Drilldown into RateWeight in schema cidx_5_0_xsd Drilldown into RateDistance in schema cidx_5_0_xsd Drilldown into RateUnitPrice in schema cidx_5_0_xsdXSD Diagram of RateBasisType in schema cidx_5_0_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="RateBasisType">
    <xsd:sequence>
        <xsd:element ref="RateUnitPrice" />
        <xsd:element ref="RateDistance" minOccurs="0" />
        <xsd:element ref="RateWeight" minOccurs="0" />
        <xsd:element ref="RateVolume" minOccurs="0" />
        <xsd:element ref="RateService" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RateUnitPrice nsA:RateUnitPrice (1) (1)
RateDistance nsA:RateDistance 0 (1)
RateWeight nsA:RateWeight 0 (1)
RateVolume nsA:RateVolume 0 (1)
RateService nsA:RateService 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:RateBasis
