Documentation for CIDX eChemical Standard
Definition Type: Element
Name: ShipmentDateReference
Namespace: urn:cidx:names:specification:ces:schema:all:5:0
Type: nsA:ShipmentDateReferenceType
Containing Schema: CIDX_5.0.xsd
Abstract

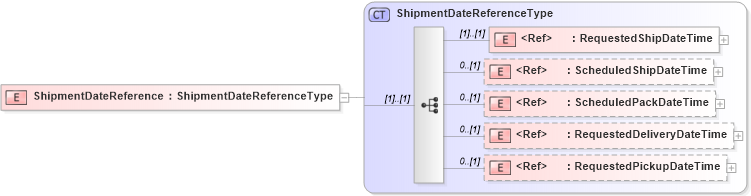

Collapse XSD Schema Diagram:
Drilldown into RequestedPickupDateTime in schema cidx_5_0_xsd Drilldown into RequestedDeliveryDateTime in schema cidx_5_0_xsd Drilldown into ScheduledPackDateTime in schema cidx_5_0_xsd Drilldown into ScheduledShipDateTime in schema cidx_5_0_xsd Drilldown into RequestedShipDateTime in schema cidx_5_0_xsd Drilldown into ShipmentDateReferenceType in schema cidx_5_0_xsdXSD Diagram of ShipmentDateReference in schema cidx_5_0_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="ShipmentDateReference" type="ShipmentDateReferenceType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RequestedShipDateTime nsA:RequestedShipDateTime (1) (1)
ScheduledShipDateTime nsA:ScheduledShipDateTime 0 (1)
ScheduledPackDateTime nsA:ScheduledPackDateTime 0 (1)
RequestedDeliveryDateTime nsA:RequestedDeliveryDateTime 0 (1)
RequestedPickupDateTime nsA:RequestedPickupDateTime 0 (1)
Collapse Derivation Tree:
