Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: ShipNoticeProductLineItemType
Namespace: urn:cidx:names:specification:ces:schema:all:5:0
Containing Schema: CIDX_5.0.xsd
Abstract

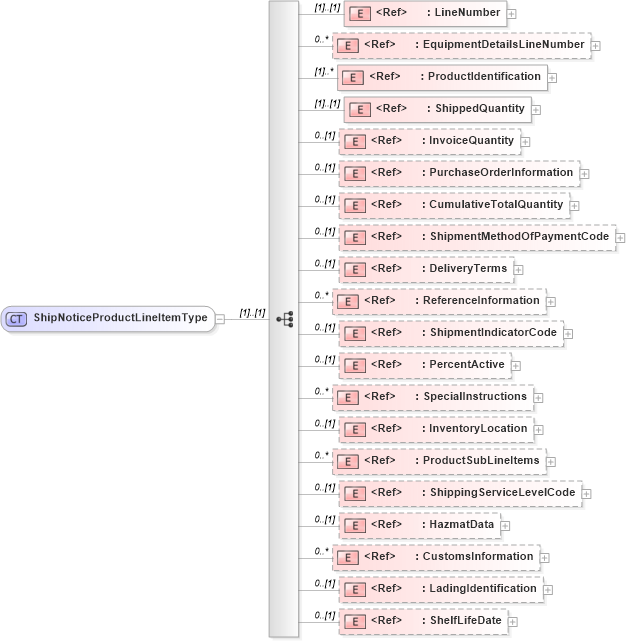

Collapse XSD Schema Diagram:
Drilldown into ShelfLifeDate in schema cidx_5_0_xsd Drilldown into LadingIdentification in schema cidx_5_0_xsd Drilldown into CustomsInformation in schema cidx_5_0_xsd Drilldown into HazmatData in schema cidx_5_0_xsd Drilldown into ShippingServiceLevelCode in schema cidx_5_0_xsd Drilldown into ProductSubLineItems in schema cidx_5_0_xsd Drilldown into InventoryLocation in schema cidx_5_0_xsd Drilldown into SpecialInstructions in schema cidx_5_0_xsd Drilldown into PercentActive in schema cidx_5_0_xsd Drilldown into ShipmentIndicatorCode in schema cidx_5_0_xsd Drilldown into ReferenceInformation in schema cidx_5_0_xsd Drilldown into DeliveryTerms in schema cidx_5_0_xsd Drilldown into ShipmentMethodOfPaymentCode in schema cidx_5_0_xsd Drilldown into CumulativeTotalQuantity in schema cidx_5_0_xsd Drilldown into PurchaseOrderInformation in schema cidx_5_0_xsd Drilldown into InvoiceQuantity in schema cidx_5_0_xsd Drilldown into ShippedQuantity in schema cidx_5_0_xsd Drilldown into ProductIdentification in schema cidx_5_0_xsd Drilldown into EquipmentDetailsLineNumber in schema cidx_5_0_xsd Drilldown into LineNumber in schema cidx_5_0_xsdXSD Diagram of ShipNoticeProductLineItemType in schema cidx_5_0_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="ShipNoticeProductLineItemType">
    <xsd:sequence>
        <xsd:element ref="LineNumber" />
        <xsd:element ref="EquipmentDetailsLineNumber" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ProductIdentification" maxOccurs="unbounded" />
        <xsd:element ref="ShippedQuantity" />
        <xsd:element ref="InvoiceQuantity" minOccurs="0" />
        <xsd:element ref="PurchaseOrderInformation" minOccurs="0" />
        <xsd:element ref="CumulativeTotalQuantity" minOccurs="0" />
        <xsd:element ref="ShipmentMethodOfPaymentCode" minOccurs="0" />
        <xsd:element ref="DeliveryTerms" minOccurs="0" />
        <xsd:element ref="ReferenceInformation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ShipmentIndicatorCode" minOccurs="0" />
        <xsd:element ref="PercentActive" minOccurs="0" />
        <xsd:element ref="SpecialInstructions" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="InventoryLocation" minOccurs="0" />
        <xsd:element ref="ProductSubLineItems" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ShippingServiceLevelCode" minOccurs="0" />
        <xsd:element ref="HazmatData" minOccurs="0" />
        <xsd:element ref="CustomsInformation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="LadingIdentification" minOccurs="0" />
        <xsd:element ref="ShelfLifeDate" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber (1) (1)
EquipmentDetailsLineNumber nsA:EquipmentDetailsLineNumber 0 unbounded
ProductIdentification nsA:ProductIdentification (1) unbounded
ShippedQuantity nsA:ShippedQuantity (1) (1)
InvoiceQuantity nsA:InvoiceQuantity 0 (1)
PurchaseOrderInformation nsA:PurchaseOrderInformation 0 (1)
CumulativeTotalQuantity nsA:CumulativeTotalQuantity 0 (1)
ShipmentMethodOfPaymentCode nsA:ShipmentMethodOfPaymentCode 0 (1)
DeliveryTerms nsA:DeliveryTerms 0 (1)
ReferenceInformation nsA:ReferenceInformation 0 unbounded
ShipmentIndicatorCode nsA:ShipmentIndicatorCode 0 (1)
PercentActive nsA:PercentActive 0 (1)
SpecialInstructions nsA:SpecialInstructions 0 unbounded
InventoryLocation nsA:InventoryLocation 0 (1)
ProductSubLineItems nsA:ProductSubLineItems 0 unbounded
ShippingServiceLevelCode nsA:ShippingServiceLevelCode 0 (1)
HazmatData nsA:HazmatData 0 (1)
CustomsInformation nsA:CustomsInformation 0 unbounded
LadingIdentification nsA:LadingIdentification 0 (1)
ShelfLifeDate nsA:ShelfLifeDate 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:ShipNoticeProductLineItem
