Definition Type: Element
Name: refentry
Namespace: http://docbook.org/ns/docbook
Containing Schema: docbook.xsd
Abstract

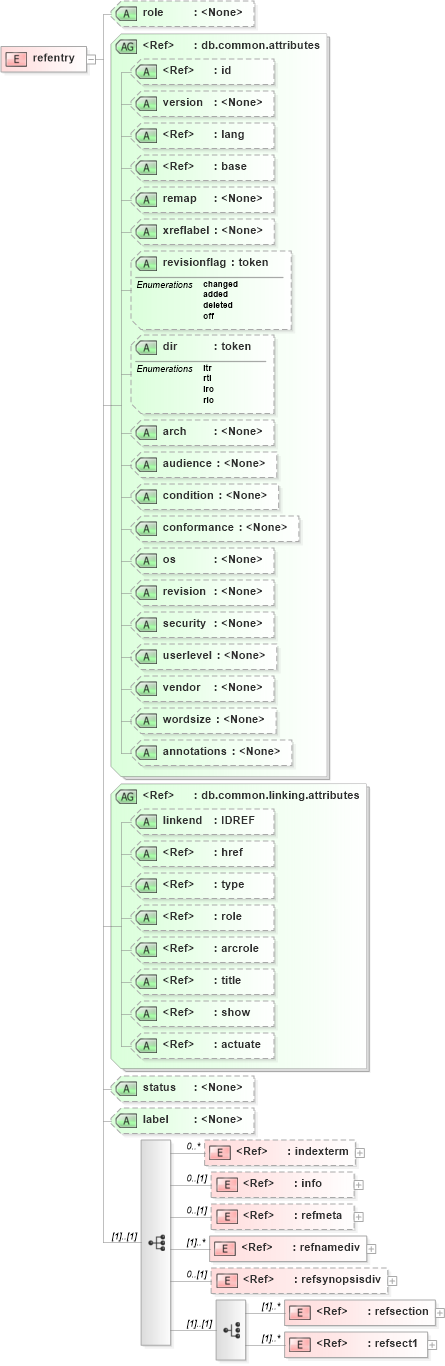

Collapse XSD Schema Diagram:
Drilldown into refsect1 in schema docbook_xsd Drilldown into refsection in schema docbook_xsd Drilldown into refsynopsisdiv in schema docbook_xsd Drilldown into refnamediv in schema docbook_xsd Drilldown into refmeta in schema docbook_xsd Drilldown into info in schema docbook_xsd Drilldown into indexterm in schema docbook_xsd Drilldown into label in schema docbook_xsd Drilldown into status in schema docbook_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into linkend in schema docbook_xsd Drilldown into db.common.linking.attributes in schema docbook_xsd Drilldown into annotations in schema docbook_xsd Drilldown into wordsize in schema docbook_xsd Drilldown into vendor in schema docbook_xsd Drilldown into userlevel in schema docbook_xsd Drilldown into security in schema docbook_xsd Drilldown into revision in schema docbook_xsd Drilldown into os in schema docbook_xsd Drilldown into conformance in schema docbook_xsd Drilldown into condition in schema docbook_xsd Drilldown into audience in schema docbook_xsd Drilldown into arch in schema docbook_xsd Drilldown into dir in schema docbook_xsd Drilldown into revisionflag in schema docbook_xsd Drilldown into xreflabel in schema docbook_xsd Drilldown into remap in schema docbook_xsd Drilldown into base in schema xml_xsd Drilldown into lang in schema xml_xsd Drilldown into version in schema docbook_xsd Drilldown into id in schema xml_xsd Drilldown into db.common.attributes in schema docbook_xsd Drilldown into role in schema docbook_xsdXSD Diagram of refentry in schema docbook_xsd (Doc Books)
Collapse XSD Schema Code:
<xs:element name="refentry">
    <xs:complexType>
        <xs:sequence>
            <xs:element minOccurs="0" maxOccurs="unbounded" ref="docbook:indexterm" />
            <xs:element minOccurs="0" ref="docbook:info" />
            <xs:element minOccurs="0" ref="docbook:refmeta" />
            <xs:element maxOccurs="unbounded" ref="docbook:refnamediv" />
            <xs:element minOccurs="0" ref="docbook:refsynopsisdiv" />
            <xs:choice>
                <xs:element maxOccurs="unbounded" ref="docbook:refsection" />
                <xs:element maxOccurs="unbounded" ref="docbook:refsect1" />
            </xs:choice>
        </xs:sequence>
        <xs:attribute name="role" />
        <xs:attributeGroup ref="docbook:db.common.attributes" />
        <xs:attributeGroup ref="docbook:db.common.linking.attributes" />
        <xs:attribute name="status" />
        <xs:attribute name="label" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
indexterm docbook:indexterm 0 unbounded
info docbook:info 0 (1)
refmeta docbook:refmeta 0 (1)
refnamediv docbook:refnamediv (1) unbounded
refsynopsisdiv docbook:refsynopsisdiv 0 (1)
refsection docbook:refsection (1) unbounded
refsect1 docbook:refsect1 (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
role docbook:role (Optional)
id nsA:id (Optional)
version docbook:version (Optional)
lang nsA:lang (Optional)
base nsA:base (Optional)
remap docbook:remap (Optional)
xreflabel docbook:xreflabel (Optional)
revisionflag docbook:revisionflag (Optional)
dir docbook:dir (Optional)
arch docbook:arch (Optional)
audience docbook:audience (Optional)
condition docbook:condition (Optional)
conformance docbook:conformance (Optional)
os docbook:os (Optional)
revision docbook:revision (Optional)
security docbook:security (Optional)
userlevel docbook:userlevel (Optional)
vendor docbook:vendor (Optional)
wordsize docbook:wordsize (Optional)
annotations docbook:annotations (Optional)
linkend docbook:linkend (Optional)
href xlink:href (Optional)
type xlink:type (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
status docbook:status (Optional)
label docbook:label (Optional)
