Definition Type: Element
Name: AcceptanceAcknowledgement
Namespace: http://docs.oasis-open.org/ebxml-bp/ebbp-2.0
Type: nsB:AcceptanceAcknowledgementType
Containing Schema: ebbp-2.0.4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

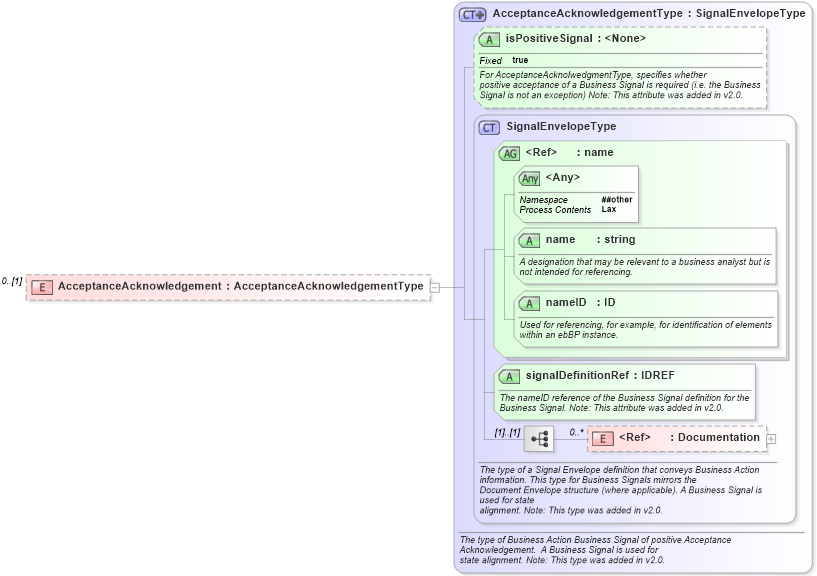

Collapse XSD Schema Diagram:
Drilldown into Documentation in schema ebbp-2_0_4_xsd Drilldown into signalDefinitionRef in schema ebbp-2_0_4_xsd Drilldown into nameID in schema ebbp-2_0_4_xsd Drilldown into name in schema ebbp-2_0_4_xsd Drilldown into name in schema ebbp-2_0_4_xsd Drilldown into SignalEnvelopeType in schema ebbp-2_0_4_xsd Drilldown into isPositiveSignal in schema ebbp-2_0_4_xsd Drilldown into AcceptanceAcknowledgementType in schema ebbp-2_0_4_xsdXSD Diagram of AcceptanceAcknowledgement in schema ebbp-2_0_4_xsd (ebXML Electronic Business using eXtensible Markup Language)
Collapse XSD Schema Code:
<xsd:element name="AcceptanceAcknowledgement" type="AcceptanceAcknowledgementType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Documentation nsB:Documentation 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name nsB:name Required
nameID nsB:nameID Required
signalDefinitionRef nsB:signalDefinitionRef Required
isPositiveSignal nsB:isPositiveSignal (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
