Definition Type: Element
Name: ActionContext
Namespace: http://www.oasis-open.org/committees/ebxml-cppa/schema/cpp-cpa-2_0.xsd
Containing Schema: cpp-cpa-2_0.xsd
Abstract

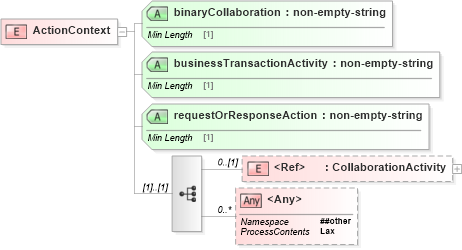

Collapse XSD Schema Diagram:
Drilldown into CollaborationActivity in schema cpp-cpa-2_0_xsd Drilldown into requestOrResponseAction in schema cpp-cpa-2_0_xsd Drilldown into businessTransactionActivity in schema cpp-cpa-2_0_xsd Drilldown into binaryCollaboration in schema cpp-cpa-2_0_xsdXSD Diagram of ActionContext in schema cpp-cpa-2_0_xsd (ebXML Electronic Business using eXtensible Markup Language)
Collapse XSD Schema Code:
<element name="ActionContext">
    <complexType>
        <sequence>
            <element ref="tns:CollaborationActivity" minOccurs="0" />
            <any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded" />
        </sequence>
        <attribute name="binaryCollaboration" type="tns:non-empty-string" use="required" />
        <attribute name="businessTransactionActivity" type="tns:non-empty-string" use="required" />
        <attribute name="requestOrResponseAction" type="tns:non-empty-string" use="required" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CollaborationActivity tns:CollaborationActivity 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
binaryCollaboration tns:binaryCollaboration Required
businessTransactionActivity tns:businessTransactionActivity Required
requestOrResponseAction tns:requestOrResponseAction Required
