Documentation for ebXML Electronic Business using eXtensible Markup Language
Definition Type: Element
Name: BusinessTransactionCharacteristics
Namespace: http://www.oasis-open.org/committees/ebxml-cppa/schema/cpp-cpa-2_0.xsd
Containing Schema: cpp-cpa-2_0.xsd
Abstract

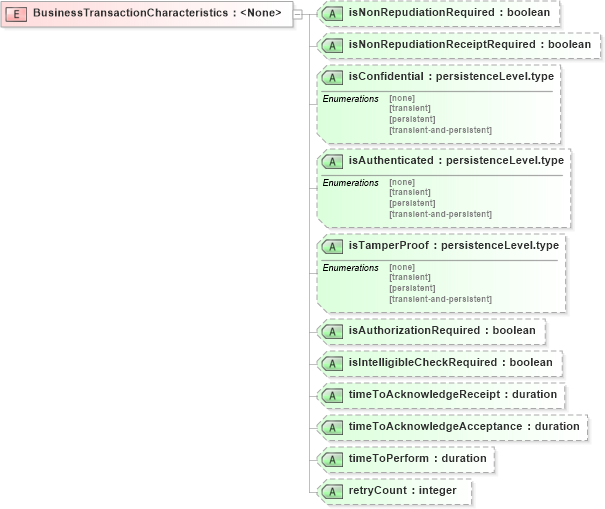

Collapse XSD Schema Diagram:
Drilldown into retryCount in schema cpp-cpa-2_0_xsd Drilldown into timeToPerform in schema cpp-cpa-2_0_xsd Drilldown into timeToAcknowledgeAcceptance in schema cpp-cpa-2_0_xsd Drilldown into timeToAcknowledgeReceipt in schema cpp-cpa-2_0_xsd Drilldown into isIntelligibleCheckRequired in schema cpp-cpa-2_0_xsd Drilldown into isAuthorizationRequired in schema cpp-cpa-2_0_xsd Drilldown into isTamperProof in schema cpp-cpa-2_0_xsd Drilldown into isAuthenticated in schema cpp-cpa-2_0_xsd Drilldown into isConfidential in schema cpp-cpa-2_0_xsd Drilldown into isNonRepudiationReceiptRequired in schema cpp-cpa-2_0_xsd Drilldown into isNonRepudiationRequired in schema cpp-cpa-2_0_xsdXSD Diagram of BusinessTransactionCharacteristics in schema cpp-cpa-2_0_xsd (ebXML Electronic Business using eXtensible Markup Language)
Collapse XSD Schema Code:
<element name="BusinessTransactionCharacteristics">
    <complexType>
        <attribute name="isNonRepudiationRequired" type="boolean" />
        <attribute name="isNonRepudiationReceiptRequired" type="boolean" />
        <attribute name="isConfidential" type="tns:persistenceLevel.type" />
        <attribute name="isAuthenticated" type="tns:persistenceLevel.type" />
        <attribute name="isTamperProof" type="tns:persistenceLevel.type" />
        <attribute name="isAuthorizationRequired" type="boolean" />
        <attribute name="isIntelligibleCheckRequired" type="boolean" />
        <attribute name="timeToAcknowledgeReceipt" type="duration" />
        <attribute name="timeToAcknowledgeAcceptance" type="duration" />
        <attribute name="timeToPerform" type="duration" />
        <attribute name="retryCount" type="integer" />
    </complexType>
</element>
Collapse Child Attributes:
Name Type Default Value Use
isNonRepudiationRequired tns:isNonRepudiationRequired (Optional)
isNonRepudiationReceiptRequired tns:isNonRepudiationReceiptRequired (Optional)
isConfidential tns:isConfidential (Optional)
isAuthenticated tns:isAuthenticated (Optional)
isTamperProof tns:isTamperProof (Optional)
isAuthorizationRequired tns:isAuthorizationRequired (Optional)
isIntelligibleCheckRequired tns:isIntelligibleCheckRequired (Optional)
timeToAcknowledgeReceipt tns:timeToAcknowledgeReceipt (Optional)
timeToAcknowledgeAcceptance tns:timeToAcknowledgeAcceptance (Optional)
timeToPerform tns:timeToPerform (Optional)
retryCount tns:retryCount (Optional)
