Definition Type: Element
Name: Endpoint
Namespace: http://www.oasis-open.org/committees/ebxml-cppa/schema/cpp-cpa-2_0.xsd
Containing Schema: cpp-cpa-2_0.xsd
Abstract
Collapse XSD Schema Diagram:

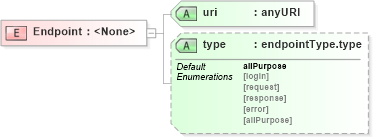

Drilldown into type in schema cpp-cpa-2_0_xsd Drilldown into uri in schema cpp-cpa-2_0_xsdXSD Diagram of Endpoint in schema cpp-cpa-2_0_xsd (ebXML Electronic Business using eXtensible Markup Language)
Collapse XSD Schema Code:
<element name="Endpoint">
    <complexType>
        <attribute name="uri" type="anyURI" use="required" />
        <attribute name="type" type="tns:endpointType.type" default="allPurpose" />
    </complexType>
</element>
Collapse Child Attributes:
Name Type Default Value Use
uri tns:uri Required
type tns:type allPurpose (Optional)
