Definition Type: ComplexType
Name: ExternalRolesType
Namespace: http://docs.oasis-open.org/ebxml-bp/ebbp-2.0
Containing Schema: ebbp-2.0.4.xsd
Abstract
Documentation:
Types for the external role that maps to actual roles in a Business Collaboration. Performs elements are needed when the values of Roles declared in a Business Collaboration differ from the values declared with the @name attribute. Note: This complexType was added in v2.0.

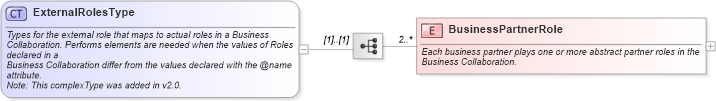

Collapse XSD Schema Diagram:
Drilldown into BusinessPartnerRole in schema ebbp-2_0_4_xsdXSD Diagram of ExternalRolesType in schema ebbp-2_0_4_xsd (ebXML Electronic Business using eXtensible Markup Language)
Collapse XSD Schema Code:
<xsd:complexType name="ExternalRolesType">
    <xsd:annotation>
        <xsd:documentation>Types for the external role that maps to actual roles in a Business
				Collaboration. Performs elements are needed when the values of Roles declared in a
				Business Collaboration differ from the values declared with the @name attribute.
				Note: This complexType was added in v2.0.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="BusinessPartnerRole" minOccurs="2" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Each business partner plays one or more abstract partner roles in the Business Collaboration. </xsd:documentation>
            </xsd:annotation>
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element ref="Documentation" minOccurs="0" />
                    <xsd:element name="Performs" type="PerformsType" minOccurs="0" maxOccurs="unbounded" />
                </xsd:sequence>
                <xsd:attributeGroup ref="name" />
            </xsd:complexType>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BusinessPartnerRole nsB:BusinessPartnerRole 2 unbounded
Collapse Derivation Tree:
Collapse References:
nsB:ExternalRoles
