Documentation for ebXML Electronic Business using eXtensible Markup Language
Definition Type: Element
Name: RequestingRole
Namespace: http://docs.oasis-open.org/ebxml-bp/ebbp-2.0
Type: nsB:RoleType
Containing Schema: ebbp-2.0.4.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Allows definition of the Requesting declarative role on the Business Transaction. This explicit, yet abstract, role facilitates role mapping. This element was added in v2.0.1.

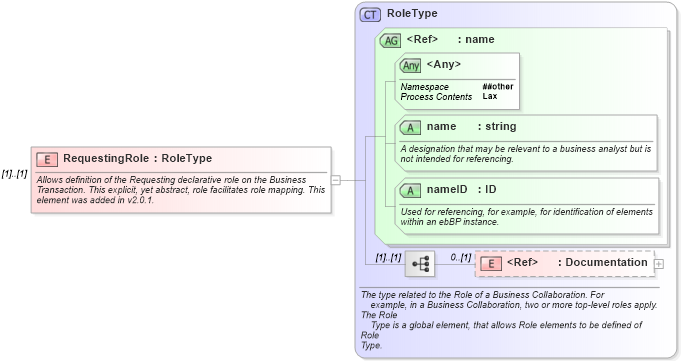

Collapse XSD Schema Diagram:
Drilldown into Documentation in schema ebbp-2_0_4_xsd Drilldown into nameID in schema ebbp-2_0_4_xsd Drilldown into name in schema ebbp-2_0_4_xsd Drilldown into name in schema ebbp-2_0_4_xsd Drilldown into RoleType in schema ebbp-2_0_4_xsdXSD Diagram of RequestingRole in schema ebbp-2_0_4_xsd (ebXML Electronic Business using eXtensible Markup Language)
Collapse XSD Schema Code:
<xsd:element name="RequestingRole" type="RoleType">
    <xsd:annotation>
        <xsd:documentation>Allows definition of the Requesting declarative role on the Business Transaction. This explicit, yet abstract, role facilitates role mapping. This element was added in v2.0.1.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Documentation nsB:Documentation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name nsB:name Required
nameID nsB:nameID Required
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
