Documentation for ebXML Electronic Business using eXtensible Markup Language
Definition Type: Element
Name: Role
Namespace: http://docs.oasis-open.org/ebxml-bp/ebbp-2.0
Type: nsB:RoleType
Containing Schema: ebbp-2.0.4.xsd
MinOccurs 2
MaxOccurs unbounded
Abstract

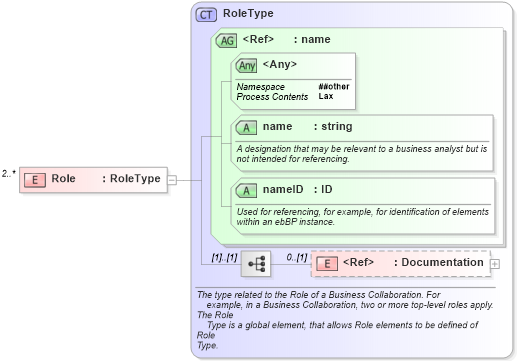

Collapse XSD Schema Diagram:
Drilldown into Documentation in schema ebbp-2_0_4_xsd Drilldown into nameID in schema ebbp-2_0_4_xsd Drilldown into name in schema ebbp-2_0_4_xsd Drilldown into name in schema ebbp-2_0_4_xsd Drilldown into RoleType in schema ebbp-2_0_4_xsdXSD Diagram of Role in schema ebbp-2_0_4_xsd (ebXML Electronic Business using eXtensible Markup Language)
Collapse XSD Schema Code:
<xsd:element name="Role" type="RoleType" minOccurs="2" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Documentation nsB:Documentation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name nsB:name Required
nameID nsB:nameID Required
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
