Definition Type: Element
Name: SignalMap
Namespace: http://docs.oasis-open.org/ebxml-bp/ebbp-2.0
Containing Schema: ebbp-2.0.4.xsd
MinOccurs 0
MaxOccurs 8
Abstract

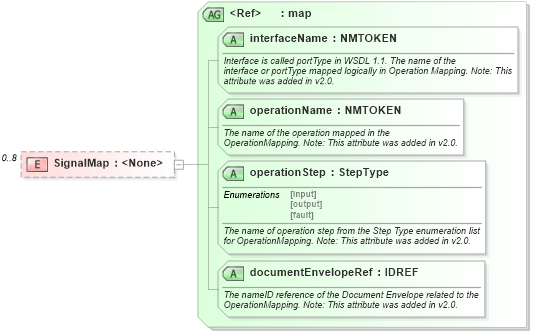

Collapse XSD Schema Diagram:
Drilldown into documentEnvelopeRef in schema ebbp-2_0_4_xsd Drilldown into operationStep in schema ebbp-2_0_4_xsd Drilldown into operationName in schema ebbp-2_0_4_xsd Drilldown into interfaceName in schema ebbp-2_0_4_xsd Drilldown into map in schema ebbp-2_0_4_xsdXSD Diagram of SignalMap in schema ebbp-2_0_4_xsd (ebXML Electronic Business using eXtensible Markup Language)
Collapse XSD Schema Code:
<xsd:element name="SignalMap" minOccurs="0" maxOccurs="8">
    <xsd:complexType>
        <xsd:attributeGroup ref="map" />
    </xsd:complexType>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
interfaceName nsB:interfaceName Required
operationName nsB:operationName Required
operationStep nsB:operationStep Required
documentEnvelopeRef nsB:documentEnvelopeRef Required
