Definition Type: Element
Name: TimeToPerform
Namespace: http://docs.oasis-open.org/ebxml-bp/ebbp-2.0
Containing Schema: ebbp-2.0.4.xsd
Abstract
Documentation:
The expected time available to successfully complete a specified activity such as a substantive response to a request. The Time To Perform could be a variable, i.e. it can be specified at different points during the process lifecycle. Note: This element was added (previously was an attribute on specific elements) in v2.0; capabilities were also added for late binding.

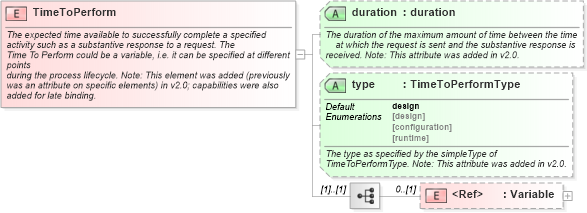

Collapse XSD Schema Diagram:
Drilldown into Variable in schema ebbp-2_0_4_xsd Drilldown into type in schema ebbp-2_0_4_xsd Drilldown into duration in schema ebbp-2_0_4_xsdXSD Diagram of TimeToPerform in schema ebbp-2_0_4_xsd (ebXML Electronic Business using eXtensible Markup Language)
Collapse XSD Schema Code:
<xsd:element name="TimeToPerform">
    <xsd:annotation>
        <xsd:documentation>The expected time available to successfully complete a specified
				activity such as a substantive response to a request. The
				Time To Perform could be a variable, i.e. it can be specified at different points
				during the process lifecycle. Note: This element was added (previously was an attribute on specific elements) in v2.0; capabilities were also added for late binding.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element ref="Variable" minOccurs="0" />
        </xsd:sequence>
        <xsd:attribute name="duration" type="xsd:duration" use="optional">
            <xsd:annotation>
                <xsd:documentation>The duration of the maximum amount of time between the time
						at which the request is sent and the substantive response is
					received. Note: This attribute was added in v2.0.</xsd:documentation>
            </xsd:annotation>
        </xsd:attribute>
        <xsd:attribute name="type" type="TimeToPerformType" use="optional" default="design">
            <xsd:annotation>
                <xsd:documentation>The type as specified by the simpleType of
					TimeToPerformType. Note: This attribute was added in v2.0.</xsd:documentation>
            </xsd:annotation>
        </xsd:attribute>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Variable nsB:Variable 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
duration nsB:duration Optional
type nsB:type design Optional
