Definition Type: Element
Name: TransportClientSecurity
Namespace: http://www.oasis-open.org/committees/ebxml-cppa/schema/cpp-cpa-2_0.xsd
Containing Schema: cpp-cpa-2_0.xsd
Abstract

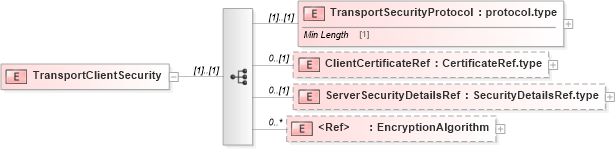

Collapse XSD Schema Diagram:
Drilldown into EncryptionAlgorithm in schema cpp-cpa-2_0_xsd Drilldown into ServerSecurityDetailsRef in schema cpp-cpa-2_0_xsd Drilldown into ClientCertificateRef in schema cpp-cpa-2_0_xsd Drilldown into TransportSecurityProtocol in schema cpp-cpa-2_0_xsdXSD Diagram of TransportClientSecurity in schema cpp-cpa-2_0_xsd (ebXML Electronic Business using eXtensible Markup Language)
Collapse XSD Schema Code:
<element name="TransportClientSecurity">
    <complexType>
        <sequence>
            <element name="TransportSecurityProtocol" type="tns:protocol.type" />
            <element name="ClientCertificateRef" type="tns:CertificateRef.type" minOccurs="0" />
            <element name="ServerSecurityDetailsRef" type="tns:SecurityDetailsRef.type" minOccurs="0" />
            <element ref="tns:EncryptionAlgorithm" minOccurs="0" maxOccurs="unbounded" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransportSecurityProtocol tns:TransportSecurityProtocol (1) (1)
ClientCertificateRef tns:ClientCertificateRef 0 (1)
ServerSecurityDetailsRef tns:ServerSecurityDetailsRef 0 (1)
EncryptionAlgorithm tns:EncryptionAlgorithm 0 unbounded
