Definition Type: Element
Name: AddressLine
Namespace: urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
Containing Schema: xAL.xsd
Abstract
Documentation:
Free format address representation. An address can have more than one line. The order of the AddressLine elements must be preserved.

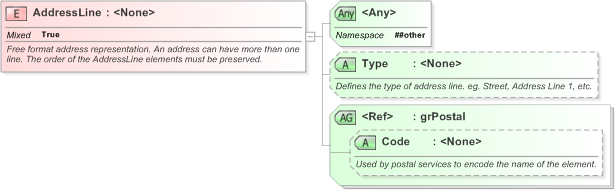

Collapse XSD Schema Diagram:
Drilldown into Code in schema xal_xsd Drilldown into grPostal in schema xal_xsd Drilldown into Type in schema xal_xsdXSD Diagram of AddressLine in schema xal_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:element name="AddressLine">
    <xs:annotation>
        <xs:documentation>Free format address representation. An address can have more than one line. The order of the AddressLine elements must be preserved.</xs:documentation>
    </xs:annotation>
    <xs:complexType mixed="true">
        <xs:attribute name="Type">
            <xs:annotation>
                <xs:documentation>Defines the type of address line. eg. Street, Address Line 1, etc.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attributeGroup ref="grPostal" />
        <xs:anyAttribute namespace="##other" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
Type xal:Type (Optional)
Code xal:Code (Optional)
<anyAttribute> Allowed namespace: '##other'
