Documentation for OASIS Election Markup Language (EML)
Definition Type: Element
Name: PostalCodeNumber
Namespace: urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
Containing Schema: xAL.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Specification of a postcode. The postcode is formatted according to country-specific rules. Example: SW3 0A8-1A, 600074, 2067

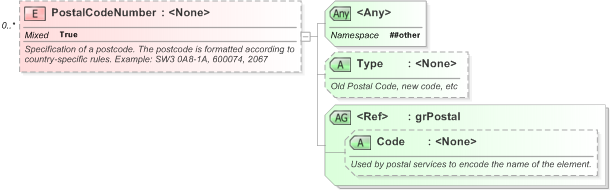

Collapse XSD Schema Diagram:
Drilldown into Code in schema xal_xsd Drilldown into grPostal in schema xal_xsd Drilldown into Type in schema xal_xsdXSD Diagram of PostalCodeNumber in schema xal_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:element name="PostalCodeNumber" minOccurs="0" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>Specification of a postcode. The postcode is formatted according to country-specific rules. Example: SW3 0A8-1A, 600074, 2067</xs:documentation>
    </xs:annotation>
    <xs:complexType mixed="true">
        <xs:attribute name="Type">
            <xs:annotation>
                <xs:documentation>Old Postal Code, new code, etc</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attributeGroup ref="grPostal" />
        <xs:anyAttribute namespace="##other" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
Type xal:Type (Optional)
Code xal:Code (Optional)
<anyAttribute> Allowed namespace: '##other'
