Definition Type: ComplexType
Name: ConceptWEventType
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: EventsML-G2_1.1-spec-Framework-Core.xsd
Abstract
Documentation:
The type for a NAR based concept extended by eventDetails

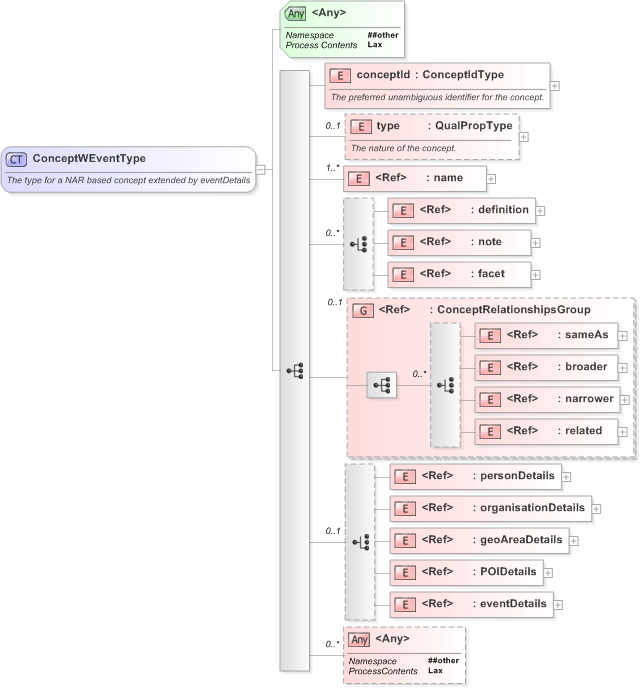

Collapse XSD Schema Diagram:
Drilldown into eventDetails in schema eventsml-g2_1_1-spec-framework-core_xsd Drilldown into POIDetails in schema nar_1_3-spec-framework-core_xsd Drilldown into geoAreaDetails in schema nar_1_3-spec-framework-core_xsd Drilldown into organisationDetails in schema nar_1_3-spec-framework-core_xsd Drilldown into personDetails in schema nar_1_3-spec-framework-core_xsd Drilldown into related in schema nar_1_3-spec-framework-core_xsd Drilldown into narrower in schema nar_1_3-spec-framework-core_xsd Drilldown into broader in schema nar_1_3-spec-framework-core_xsd Drilldown into sameAs in schema nar_1_3-spec-framework-core_xsd Drilldown into ConceptRelationshipsGroup in schema nar_1_3-spec-framework-core_xsd Drilldown into facet in schema nar_1_3-spec-framework-core_xsd Drilldown into note in schema nar_1_3-spec-framework-core_xsd Drilldown into definition in schema nar_1_3-spec-framework-core_xsd Drilldown into name in schema nar_1_3-spec-framework-core_xsd Drilldown into type in schema eventsml-g2_1_1-spec-framework-core_xsd Drilldown into conceptId in schema eventsml-g2_1_1-spec-framework-core_xsdXSD Diagram of ConceptWEventType in schema eventsml-g2_1_1-spec-framework-core_xsd (EventsML - News Exchange Format)
Collapse XSD Schema Code:
<xs:complexType name="ConceptWEventType">
    <xs:annotation>
        <xs:documentation>The type for a NAR based concept extended by eventDetails</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="conceptId" type="ConceptIdType">
            <xs:annotation>
                <xs:documentation>The preferred unambiguous identifier for the concept.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="type" type="QualPropType" minOccurs="0">
            <xs:annotation>
                <xs:documentation>The nature of the concept.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element ref="name" maxOccurs="unbounded" />
        <xs:choice minOccurs="0" maxOccurs="unbounded">
            <xs:element ref="definition" />
            <xs:element ref="note" />
            <xs:element ref="facet" />
        </xs:choice>
        <xs:group ref="ConceptRelationshipsGroup" minOccurs="0" />
        <xs:choice minOccurs="0">
            <xs:element ref="personDetails" />
            <xs:element ref="organisationDetails" />
            <xs:element ref="geoAreaDetails" />
            <xs:element ref="POIDetails" />
            <xs:element ref="eventDetails" />
        </xs:choice>
        <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:anyAttribute namespace="##other" processContents="lax" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
conceptId nsA:conceptId (1) (1)
type nsA:type 0 (1)
name nsA:name (1) unbounded
definition nsA:definition (1) (1)
note nsA:note (1) (1)
facet nsA:facet (1) (1)
sameAs nsA:sameAs (1) (1)
broader nsA:broader (1) (1)
narrower nsA:narrower (1) (1)
related nsA:related (1) (1)
personDetails nsA:personDetails (1) (1)
organisationDetails nsA:organisationDetails (1) (1)
geoAreaDetails nsA:geoAreaDetails (1) (1)
POIDetails nsA:POIDetails (1) (1)
eventDetails nsA:eventDetails (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
<xs:group> nsA:ConceptRelationshipsGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsA:concept, nsA:concept
