Definition Type: Element
Name: event
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: EventsML-G2_1.1-spec-Framework-Core.xsd
Abstract
Documentation:
Structured information about an event without a concept identifier

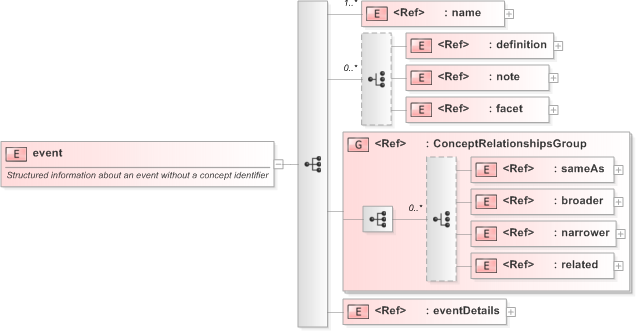

Collapse XSD Schema Diagram:
Drilldown into eventDetails in schema eventsml-g2_1_1-spec-framework-core_xsd Drilldown into related in schema nar_1_3-spec-framework-core_xsd Drilldown into narrower in schema nar_1_3-spec-framework-core_xsd Drilldown into broader in schema nar_1_3-spec-framework-core_xsd Drilldown into sameAs in schema nar_1_3-spec-framework-core_xsd Drilldown into ConceptRelationshipsGroup in schema nar_1_3-spec-framework-core_xsd Drilldown into facet in schema nar_1_3-spec-framework-core_xsd Drilldown into note in schema nar_1_3-spec-framework-core_xsd Drilldown into definition in schema nar_1_3-spec-framework-core_xsd Drilldown into name in schema nar_1_3-spec-framework-core_xsdXSD Diagram of event in schema eventsml-g2_1_1-spec-framework-core_xsd (EventsML - News Exchange Format)
Collapse XSD Schema Code:
<xs:element name="event">
    <xs:annotation>
        <xs:documentation>Structured information about an event without a concept identifier</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="name" maxOccurs="unbounded" />
            <xs:choice minOccurs="0" maxOccurs="unbounded">
                <xs:element ref="definition" />
                <xs:element ref="note" />
                <xs:element ref="facet" />
            </xs:choice>
            <xs:group ref="ConceptRelationshipsGroup" />
            <xs:element ref="eventDetails" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsA:name (1) unbounded
definition nsA:definition (1) (1)
note nsA:note (1) (1)
facet nsA:facet (1) (1)
sameAs nsA:sameAs (1) (1)
broader nsA:broader (1) (1)
narrower nsA:narrower (1) (1)
related nsA:related (1) (1)
eventDetails nsA:eventDetails (1) (1)
<xs:group> nsA:ConceptRelationshipsGroup (1) (1)
