Definition Type: Element
Name: link
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsA:LinkType
Containing Schema: NAR_1.3-spec-Framework-Core.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
A link from the current Item to a target Item or Web resource

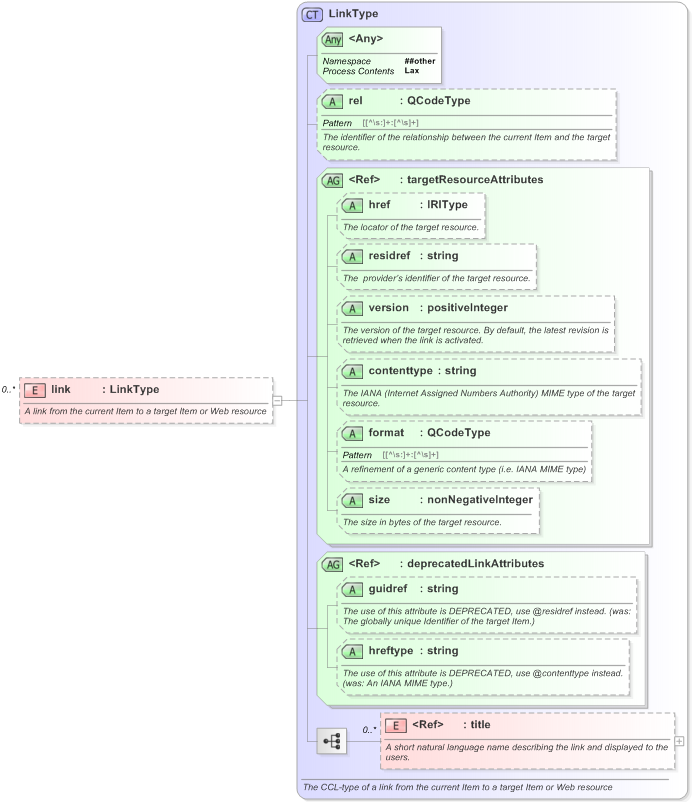

Collapse XSD Schema Diagram:
Drilldown into title in schema nar_1_3-spec-framework-core_xsd Drilldown into hreftype in schema nar_1_3-spec-framework-core_xsd Drilldown into guidref in schema nar_1_3-spec-framework-core_xsd Drilldown into deprecatedLinkAttributes in schema nar_1_3-spec-framework-core_xsd Drilldown into size in schema nar_1_3-spec-framework-core_xsd Drilldown into format in schema nar_1_3-spec-framework-core_xsd Drilldown into contenttype in schema nar_1_3-spec-framework-core_xsd Drilldown into version in schema nar_1_3-spec-framework-core_xsd Drilldown into residref in schema nar_1_3-spec-framework-core_xsd Drilldown into href in schema nar_1_3-spec-framework-core_xsd Drilldown into targetResourceAttributes in schema nar_1_3-spec-framework-core_xsd Drilldown into rel in schema nar_1_3-spec-framework-core_xsd Drilldown into LinkType in schema nar_1_3-spec-framework-core_xsdXSD Diagram of link in schema nar_1_3-spec-framework-core_xsd (EventsML - News Exchange Format)
Collapse XSD Schema Code:
<xs:element name="link" type="LinkType" minOccurs="0" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>A link from the current Item to a target Item or Web resource</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
title nsA:title 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
rel nsA:rel (Optional)
href nsA:href (Optional)
residref nsA:residref (Optional)
version nsA:version (Optional)
contenttype nsA:contenttype (Optional)
format nsA:format (Optional)
size nsA:size (Optional)
guidref nsA:guidref (Optional)
hreftype nsA:hreftype (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse Comments:
