Documentation for EventsML - News Exchange Format - Power
Definition Type: Element
Name: channel
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NAR_1.8-spec-All-Power.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Information about a specific content channel.

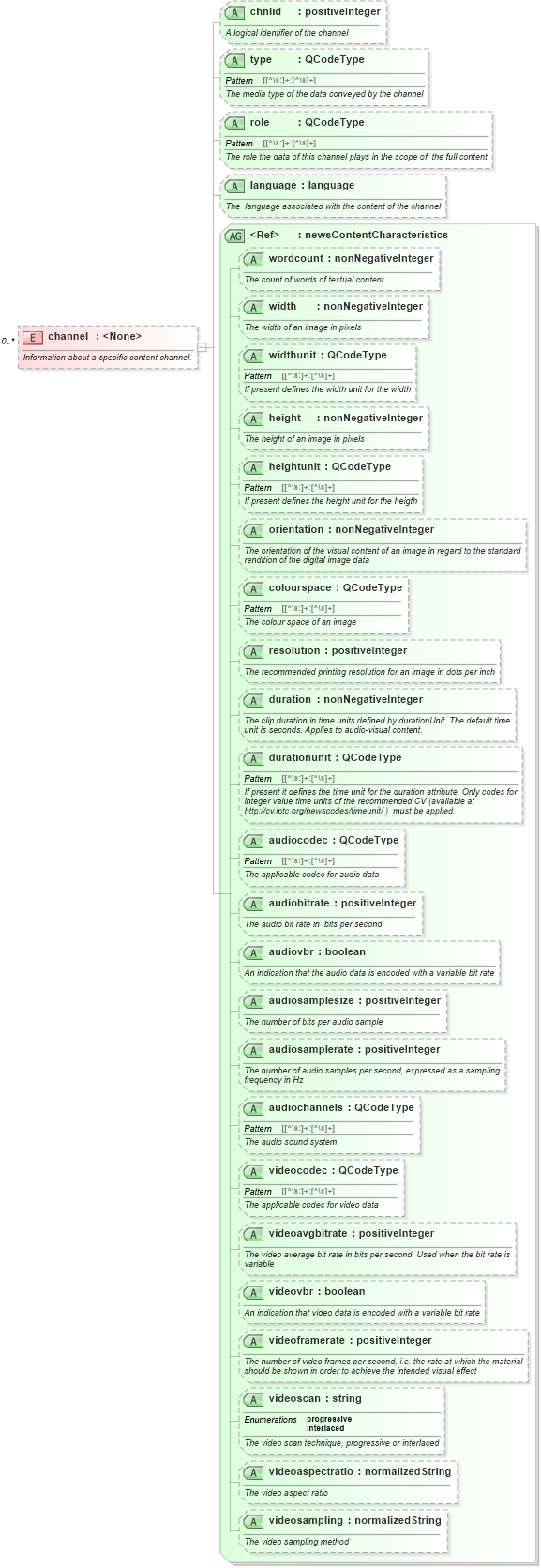

Collapse XSD Schema Diagram:
Drilldown into videosampling in schema nar_1_8-spec-all-power_xsd Drilldown into videoaspectratio in schema nar_1_8-spec-all-power_xsd Drilldown into videoscan in schema nar_1_8-spec-all-power_xsd Drilldown into videoframerate in schema nar_1_8-spec-all-power_xsd Drilldown into videovbr in schema nar_1_8-spec-all-power_xsd Drilldown into videoavgbitrate in schema nar_1_8-spec-all-power_xsd Drilldown into videocodec in schema nar_1_8-spec-all-power_xsd Drilldown into audiochannels in schema nar_1_8-spec-all-power_xsd Drilldown into audiosamplerate in schema nar_1_8-spec-all-power_xsd Drilldown into audiosamplesize in schema nar_1_8-spec-all-power_xsd Drilldown into audiovbr in schema nar_1_8-spec-all-power_xsd Drilldown into audiobitrate in schema nar_1_8-spec-all-power_xsd Drilldown into audiocodec in schema nar_1_8-spec-all-power_xsd Drilldown into durationunit in schema nar_1_8-spec-all-power_xsd Drilldown into duration in schema nar_1_8-spec-all-power_xsd Drilldown into resolution in schema nar_1_8-spec-all-power_xsd Drilldown into colourspace in schema nar_1_8-spec-all-power_xsd Drilldown into orientation in schema nar_1_8-spec-all-power_xsd Drilldown into heightunit in schema nar_1_8-spec-all-power_xsd Drilldown into height in schema nar_1_8-spec-all-power_xsd Drilldown into widthunit in schema nar_1_8-spec-all-power_xsd Drilldown into width in schema nar_1_8-spec-all-power_xsd Drilldown into wordcount in schema nar_1_8-spec-all-power_xsd Drilldown into newsContentCharacteristics in schema nar_1_8-spec-all-power_xsd Drilldown into language in schema nar_1_8-spec-all-power_xsd Drilldown into role in schema nar_1_8-spec-all-power_xsd Drilldown into type in schema nar_1_8-spec-all-power_xsd Drilldown into chnlid in schema nar_1_8-spec-all-power_xsdXSD Diagram of channel in schema nar_1_8-spec-all-power_xsd (EventsML - News Exchange Format - Power)
Collapse XSD Schema Code:
<xs:element name="channel" minOccurs="0" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>Information about a specific content channel.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:attribute name="chnlid" type="xs:positiveInteger">
            <xs:annotation>
                <xs:documentation>A logical identifier of the channel</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="type" type="QCodeType">
            <xs:annotation>
                <xs:documentation>The media type of the data conveyed by the channel</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="role" type="QCodeType">
            <xs:annotation>
                <xs:documentation>The role the data of this channel plays in the scope of  the full content</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="language" type="xs:language">
            <xs:annotation>
                <xs:documentation>The  language associated with the content of the channel</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attributeGroup ref="newsContentCharacteristics" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
chnlid nsA:chnlid (Optional)
type nsA:type (Optional)
role nsA:role (Optional)
language nsA:language (Optional)
wordcount nsA:wordcount (Optional)
width nsA:width (Optional)
widthunit nsA:widthunit (Optional)
height nsA:height (Optional)
heightunit nsA:heightunit (Optional)
orientation nsA:orientation (Optional)
colourspace nsA:colourspace (Optional)
resolution nsA:resolution (Optional)
duration nsA:duration (Optional)
durationunit nsA:durationunit (Optional)
audiocodec nsA:audiocodec (Optional)
audiobitrate nsA:audiobitrate (Optional)
audiovbr nsA:audiovbr (Optional)
audiosamplesize nsA:audiosamplesize (Optional)
audiosamplerate nsA:audiosamplerate (Optional)
audiochannels nsA:audiochannels (Optional)
videocodec nsA:videocodec (Optional)
videoavgbitrate nsA:videoavgbitrate (Optional)
videovbr nsA:videovbr (Optional)
videoframerate nsA:videoframerate (Optional)
videoscan nsA:videoscan (Optional)
videoaspectratio nsA:videoaspectratio (Optional)
videosampling nsA:videosampling (Optional)
