Documentation for EventsML - News Exchange Format - Power
Definition Type: Element
Name: partMeta
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NAR_1.8-spec-All-Power.xsd
Abstract
Documentation:
A set of properties describing a specific part of the content of the Item

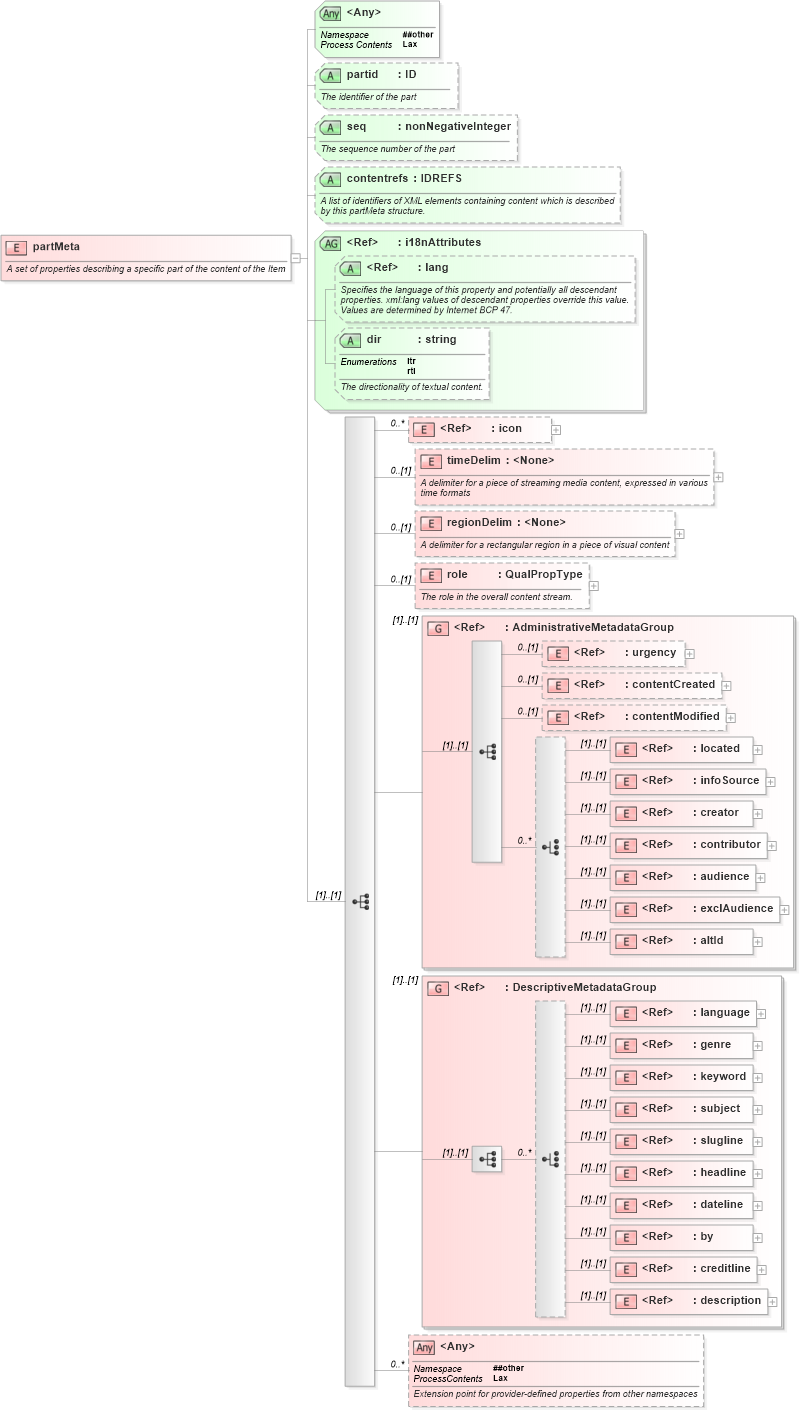

Collapse XSD Schema Diagram:
Drilldown into description in schema nar_1_8-spec-all-power_xsd Drilldown into creditline in schema nar_1_8-spec-all-power_xsd Drilldown into by in schema nar_1_8-spec-all-power_xsd Drilldown into dateline in schema nar_1_8-spec-all-power_xsd Drilldown into headline in schema nar_1_8-spec-all-power_xsd Drilldown into slugline in schema nar_1_8-spec-all-power_xsd Drilldown into subject in schema nar_1_8-spec-all-power_xsd Drilldown into keyword in schema nar_1_8-spec-all-power_xsd Drilldown into genre in schema nar_1_8-spec-all-power_xsd Drilldown into language in schema nar_1_8-spec-all-power_xsd Drilldown into DescriptiveMetadataGroup in schema nar_1_8-spec-all-power_xsd Drilldown into altId in schema nar_1_8-spec-all-power_xsd Drilldown into exclAudience in schema nar_1_8-spec-all-power_xsd Drilldown into audience in schema nar_1_8-spec-all-power_xsd Drilldown into contributor in schema nar_1_8-spec-all-power_xsd Drilldown into creator in schema nar_1_8-spec-all-power_xsd Drilldown into infoSource in schema nar_1_8-spec-all-power_xsd Drilldown into located in schema nar_1_8-spec-all-power_xsd Drilldown into contentModified in schema nar_1_8-spec-all-power_xsd Drilldown into contentCreated in schema nar_1_8-spec-all-power_xsd Drilldown into urgency in schema nar_1_8-spec-all-power_xsd Drilldown into AdministrativeMetadataGroup in schema nar_1_8-spec-all-power_xsd Drilldown into role in schema nar_1_8-spec-all-power_xsd Drilldown into regionDelim in schema nar_1_8-spec-all-power_xsd Drilldown into timeDelim in schema nar_1_8-spec-all-power_xsd Drilldown into icon in schema nar_1_8-spec-all-power_xsd Drilldown into dir in schema nar_1_8-spec-all-power_xsd Drilldown into lang in schema xml_xsd Drilldown into i18nAttributes in schema nar_1_8-spec-all-power_xsd Drilldown into contentrefs in schema nar_1_8-spec-all-power_xsd Drilldown into seq in schema nar_1_8-spec-all-power_xsd Drilldown into partid in schema nar_1_8-spec-all-power_xsdXSD Diagram of partMeta in schema nar_1_8-spec-all-power_xsd (EventsML - News Exchange Format - Power)
Collapse XSD Schema Code:
<xs:element name="partMeta">
    <xs:annotation>
        <xs:documentation>A set of properties describing a specific part of the content of the Item</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="icon" minOccurs="0" maxOccurs="unbounded" />
            <xs:element name="timeDelim" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>A delimiter for a piece of streaming media content, expressed in various time formats</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:attribute name="start" type="xs:string" use="required">
                        <xs:annotation>
                            <xs:documentation>The timestamp corresponding to the start of the part</xs:documentation>
                        </xs:annotation>
                    </xs:attribute>
                    <xs:attribute name="end" type="xs:string" use="required">
                        <xs:annotation>
                            <xs:documentation>The timestamp corresponding to the end of the part</xs:documentation>
                        </xs:annotation>
                    </xs:attribute>
                    <xs:attribute name="timeunit" type="QCodeType" use="required">
                        <xs:annotation>
                            <xs:documentation>The unit used for the start and end timestamps</xs:documentation>
                        </xs:annotation>
                    </xs:attribute>
                    <xs:attributeGroup ref="editAttributes" />
                    <xs:anyAttribute namespace="##other" processContents="lax" />
                </xs:complexType>
            </xs:element>
            <xs:element name="regionDelim" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>A delimiter for a rectangular region in a piece of visual content</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:attribute name="x" type="xs:integer">
                        <xs:annotation>
                            <xs:documentation>The x-axis coordinate of the side of the rectangle which has the smaller x-axis coordinate value in the current user coordinate system</xs:documentation>
                        </xs:annotation>
                    </xs:attribute>
                    <xs:attribute name="y" type="xs:integer">
                        <xs:annotation>
                            <xs:documentation>The y-axis coordinate of the side of the rectangle which has the smaller y-axis coordinate value in the current user coordinate system</xs:documentation>
                        </xs:annotation>
                    </xs:attribute>
                    <xs:attribute name="width" type="xs:integer">
                        <xs:annotation>
                            <xs:documentation>The width of the rectangle</xs:documentation>
                        </xs:annotation>
                    </xs:attribute>
                    <xs:attribute name="height" type="xs:integer">
                        <xs:annotation>
                            <xs:documentation>The height of the rectangle</xs:documentation>
                        </xs:annotation>
                    </xs:attribute>
                    <xs:attributeGroup ref="editAttributes" />
                    <xs:anyAttribute namespace="##other" processContents="lax" />
                </xs:complexType>
            </xs:element>
            <xs:element name="role" type="QualPropType" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>The role in the overall content stream.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:group ref="AdministrativeMetadataGroup" />
            <xs:group ref="DescriptiveMetadataGroup" />
            <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>Extension point for provider-defined properties from other namespaces</xs:documentation>
                </xs:annotation>
            </xs:any>
        </xs:sequence>
        <xs:attribute name="partid" type="xs:ID">
            <xs:annotation>
                <xs:documentation>The identifier of the part</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="seq" type="xs:nonNegativeInteger">
            <xs:annotation>
                <xs:documentation>The sequence number of the part</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="contentrefs" type="xs:IDREFS">
            <xs:annotation>
                <xs:documentation>A list of identifiers of XML elements containing content which is described by this partMeta structure.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attributeGroup ref="i18nAttributes" />
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
icon nsA:icon 0 unbounded
timeDelim nsA:timeDelim 0 (1)
regionDelim nsA:regionDelim 0 (1)
role nsA:role 0 (1)
urgency nsA:urgency 0 (1)
contentCreated nsA:contentCreated 0 (1)
contentModified nsA:contentModified 0 (1)
located nsA:located (1) (1)
infoSource nsA:infoSource (1) (1)
creator nsA:creator (1) (1)
contributor nsA:contributor (1) (1)
audience nsA:audience (1) (1)
exclAudience nsA:exclAudience (1) (1)
altId nsA:altId (1) (1)
language nsA:language (1) (1)
genre nsA:genre (1) (1)
keyword nsA:keyword (1) (1)
subject nsA:subject (1) (1)
slugline nsA:slugline (1) (1)
headline nsA:headline (1) (1)
dateline nsA:dateline (1) (1)
by nsA:by (1) (1)
creditline nsA:creditline (1) (1)
description nsA:description (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
<xs:group> nsA:AdministrativeMetadataGroup (1) (1)
<xs:group> nsA:DescriptiveMetadataGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
partid nsA:partid (Optional)
seq nsA:seq (Optional)
contentrefs nsA:contentrefs (Optional)
lang nsB:lang (Optional)
dir nsA:dir (Optional)
<anyAttribute> Allowed namespace: '##other'
