Documentation for EventsML - News Exchange Format - Power
Definition Type: Element
Name: planningItem
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsA:AnyItemType
Containing Schema: NAR_1.8-spec-All-Power.xsd
Abstract
Documentation:
An Item containing information about the planning and delivery of news coverage

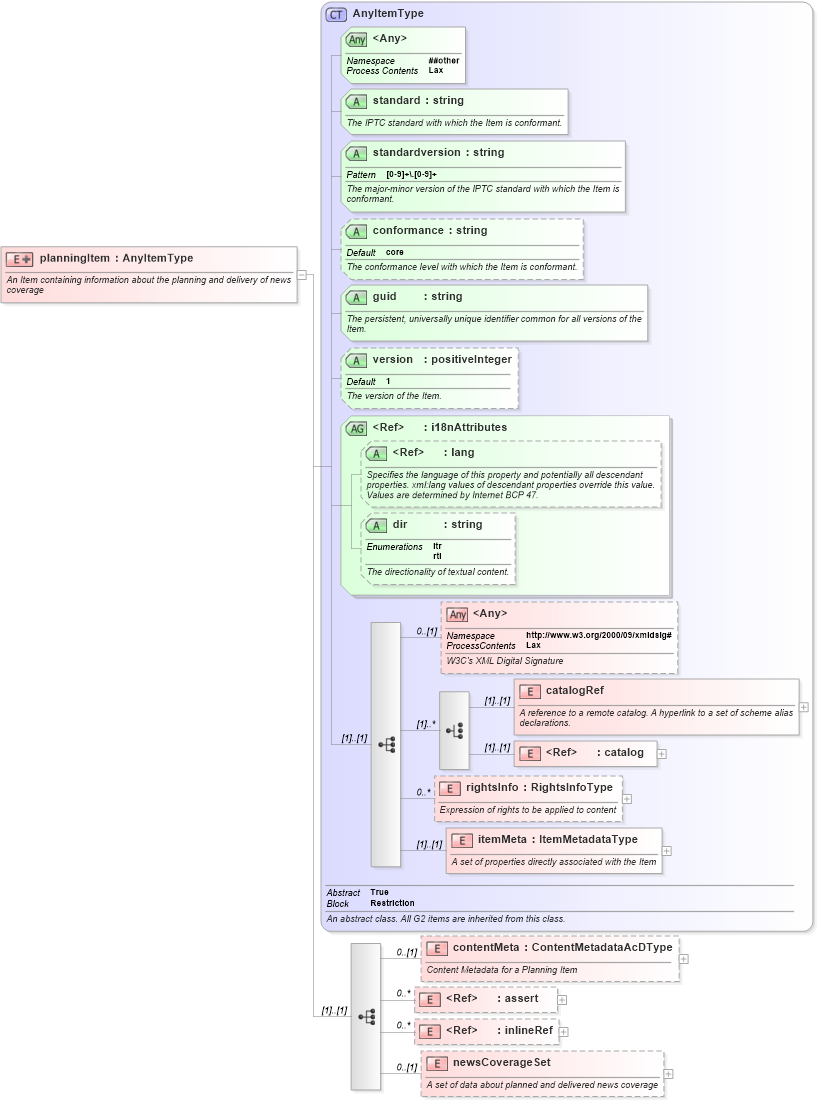

Collapse XSD Schema Diagram:
Drilldown into newsCoverageSet in schema nar_1_8-spec-all-power_xsd Drilldown into inlineRef in schema nar_1_8-spec-all-power_xsd Drilldown into assert in schema nar_1_8-spec-all-power_xsd Drilldown into contentMeta in schema nar_1_8-spec-all-power_xsd Drilldown into itemMeta in schema nar_1_8-spec-all-power_xsd Drilldown into rightsInfo in schema nar_1_8-spec-all-power_xsd Drilldown into catalog in schema nar_1_8-spec-all-power_xsd Drilldown into catalogRef in schema nar_1_8-spec-all-power_xsd Drilldown into dir in schema nar_1_8-spec-all-power_xsd Drilldown into lang in schema xml_xsd Drilldown into i18nAttributes in schema nar_1_8-spec-all-power_xsd Drilldown into version in schema nar_1_8-spec-all-power_xsd Drilldown into guid in schema nar_1_8-spec-all-power_xsd Drilldown into conformance in schema nar_1_8-spec-all-power_xsd Drilldown into standardversion in schema nar_1_8-spec-all-power_xsd Drilldown into standard in schema nar_1_8-spec-all-power_xsd Drilldown into AnyItemType in schema nar_1_8-spec-all-power_xsdXSD Diagram of planningItem in schema nar_1_8-spec-all-power_xsd (EventsML - News Exchange Format - Power)
Collapse XSD Schema Code:
<xs:element name="planningItem">
    <xs:annotation>
        <xs:documentation>An Item containing information about the planning and delivery of news coverage</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="AnyItemType">
                <xs:sequence>
                    <xs:element name="contentMeta" type="ContentMetadataAcDType" minOccurs="0">
                        <xs:annotation>
                            <xs:documentation>Content Metadata for a Planning Item</xs:documentation>
                        </xs:annotation>
                    </xs:element>
                    <xs:element ref="assert" minOccurs="0" maxOccurs="unbounded" />
                    <xs:element ref="inlineRef" minOccurs="0" maxOccurs="unbounded" />
                    <xs:element name="newsCoverageSet" minOccurs="0">
                        <xs:annotation>
                            <xs:documentation>A set of data about planned and delivered news coverage</xs:documentation>
                        </xs:annotation>
                        <xs:complexType>
                            <xs:sequence>
                                <xs:element ref="newsCoverage" maxOccurs="unbounded" />
                            </xs:sequence>
                            <xs:anyAttribute namespace="##other" />
                        </xs:complexType>
                    </xs:element>
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
catalogRef nsA:catalogRef (1) (1)
catalog nsA:catalog (1) (1)
rightsInfo nsA:rightsInfo 0 unbounded
itemMeta nsA:itemMeta (1) (1)
contentMeta nsA:contentMeta 0 (1)
assert nsA:assert 0 unbounded
inlineRef nsA:inlineRef 0 unbounded
newsCoverageSet nsA:newsCoverageSet 0 (1)
<xs:any> Allowed namespace: 'http://www.w3.org/2000/09/xmldsig#' 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
standard nsA:standard Required
standardversion nsA:standardversion Required
conformance nsA:conformance core (Optional)
guid nsA:guid Required
version nsA:version 1 (Optional)
lang nsB:lang (Optional)
dir nsA:dir (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
