Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: AdjustedPositionReport_message_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:Abstract_message_t
Containing Schema: fixml-positions-base-5-0-SP2.xsd
Abstract
Documentation:
AdjustedPositionReport can be found in Volume5 of the specification

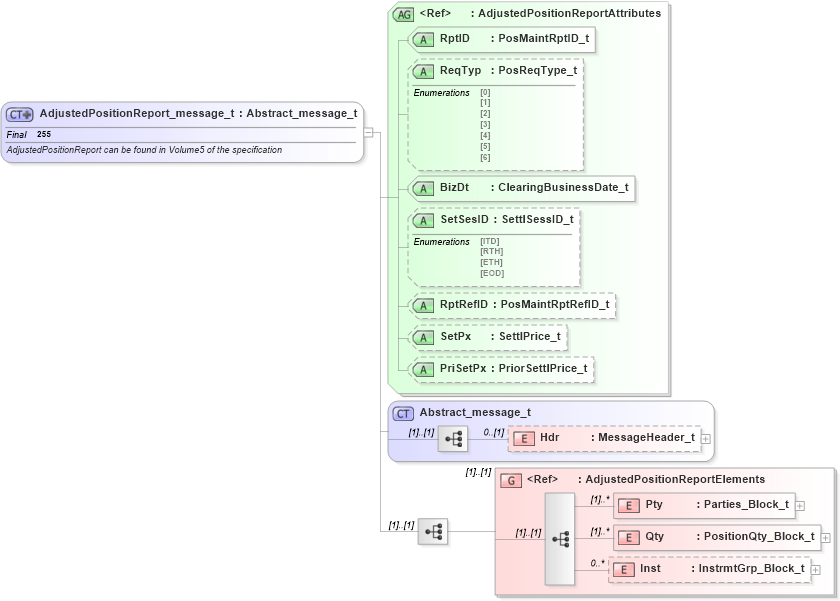

Collapse XSD Schema Diagram:
Drilldown into Inst in schema fixml-positions-base-5-0-sp2_xsd Drilldown into Qty in schema fixml-positions-base-5-0-sp2_xsd Drilldown into Pty in schema fixml-positions-base-5-0-sp2_xsd Drilldown into AdjustedPositionReportElements in schema fixml-positions-base-5-0-sp2_xsd Drilldown into Hdr in schema fixml-components-base-5-0-sp2_xsd Drilldown into Abstract_message_t in schema fixml-components-base-5-0-sp2_xsd Drilldown into PriSetPx in schema fixml-positions-base-5-0-sp2_xsd Drilldown into SetPx in schema fixml-positions-base-5-0-sp2_xsd Drilldown into RptRefID in schema fixml-positions-base-5-0-sp2_xsd Drilldown into SetSesID in schema fixml-positions-base-5-0-sp2_xsd Drilldown into BizDt in schema fixml-positions-base-5-0-sp2_xsd Drilldown into ReqTyp in schema fixml-positions-base-5-0-sp2_xsd Drilldown into RptID in schema fixml-positions-base-5-0-sp2_xsd Drilldown into AdjustedPositionReportAttributes in schema fixml-positions-base-5-0-sp2_xsdXSD Diagram of AdjustedPositionReport_message_t in schema fixml-positions-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="AdjustedPositionReport_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">AdjustedPositionReport can be found in Volume5 of the specification </xs:documentation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="AdjustedPositionReport" ComponentType="Message" MsgID="97" Section="Post Trade" Category="PositionMaintenance" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="AdjustedPositionReportElements" />
            </xs:sequence>
            <xs:attributeGroup ref="AdjustedPositionReportAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Pty nsA:Pty (1) unbounded
Qty nsA:Qty (1) unbounded
Inst nsA:Inst 0 unbounded
<xs:group> nsA:AdjustedPositionReportElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
RptID nsA:RptID Required
ReqTyp nsA:ReqTyp Optional
BizDt nsA:BizDt Required
SetSesID nsA:SetSesID Optional
RptRefID nsA:RptRefID Optional
SetPx nsA:SetPx Optional
PriSetPx nsA:PriSetPx Optional
Collapse Derivation Tree:
Collapse References:
nsA:AdjPosRpt
