Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: AllocationInstructionAck_message_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:Abstract_message_t
Containing Schema: fixml-allocation-base-5-0-SP2.xsd
Abstract
Documentation:
AllocationInstructionAck can be found in Volume5 of the specification

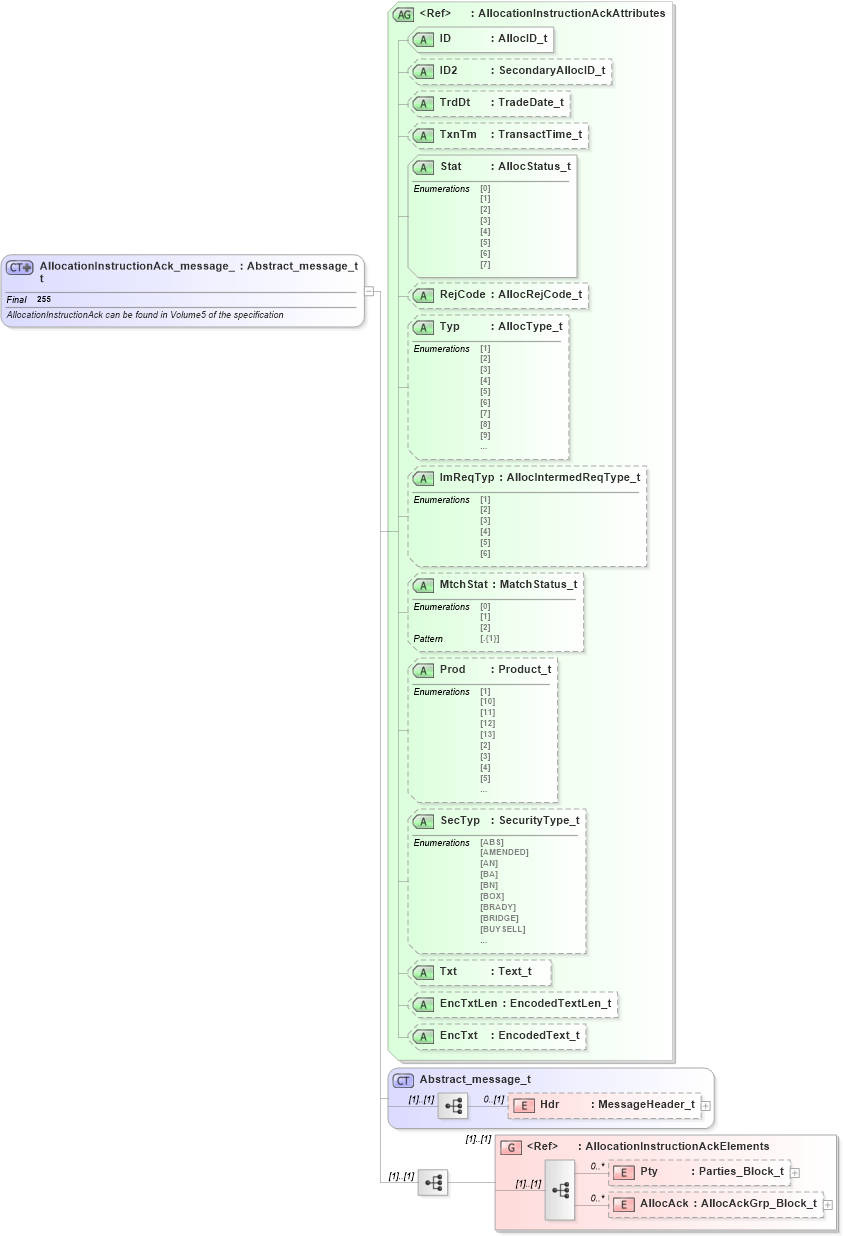

Collapse XSD Schema Diagram:
Drilldown into AllocAck in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Pty in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into AllocationInstructionAckElements in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Hdr in schema fixml-components-base-5-0-sp2_xsd Drilldown into Abstract_message_t in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into SecTyp in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Prod in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into MtchStat in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into ImReqTyp in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Typ in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into RejCode in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into Stat in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into TxnTm in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into TrdDt in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into ID2 in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into ID in schema fixml-allocation-base-5-0-sp2_xsd Drilldown into AllocationInstructionAckAttributes in schema fixml-allocation-base-5-0-sp2_xsdXSD Diagram of AllocationInstructionAck_message_t in schema fixml-allocation-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="AllocationInstructionAck_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">AllocationInstructionAck can be found in Volume5 of the specification </xs:documentation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="AllocationInstructionAck" ComponentType="Message" MsgID="24" Section="Post Trade" Category="Allocation" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="AllocationInstructionAckElements" />
            </xs:sequence>
            <xs:attributeGroup ref="AllocationInstructionAckAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Pty nsA:Pty 0 unbounded
AllocAck nsA:AllocAck 0 unbounded
<xs:group> nsA:AllocationInstructionAckElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID Required
ID2 nsA:ID2 Optional
TrdDt nsA:TrdDt Optional
TxnTm nsA:TxnTm Optional
Stat nsA:Stat Required
RejCode nsA:RejCode Optional
Typ nsA:Typ Optional
ImReqTyp nsA:ImReqTyp Optional
MtchStat nsA:MtchStat Optional
Prod nsA:Prod Optional
SecTyp nsA:SecTyp Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:AllocInstrctnAck
