Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: ContextParties_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-partiesreference-base-5-0-SP2.xsd
Abstract

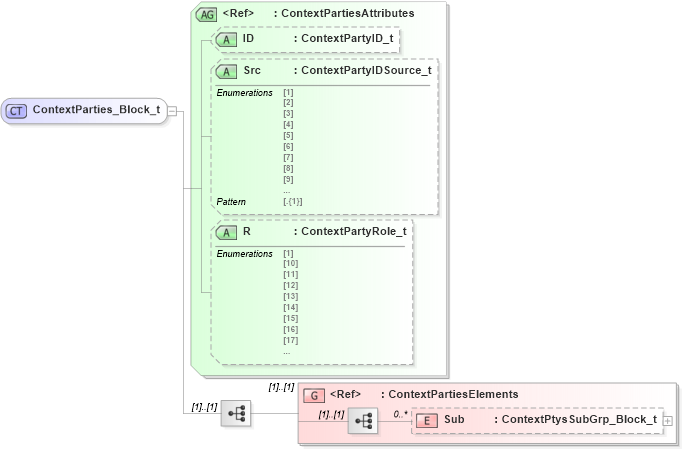

Collapse XSD Schema Diagram:
Drilldown into Sub in schema fixml-partiesreference-base-5-0-sp2_xsd Drilldown into ContextPartiesElements in schema fixml-partiesreference-base-5-0-sp2_xsd Drilldown into R in schema fixml-partiesreference-base-5-0-sp2_xsd Drilldown into Src in schema fixml-partiesreference-base-5-0-sp2_xsd Drilldown into ID in schema fixml-partiesreference-base-5-0-sp2_xsd Drilldown into ContextPartiesAttributes in schema fixml-partiesreference-base-5-0-sp2_xsdXSD Diagram of ContextParties_Block_t in schema fixml-partiesreference-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="ContextParties_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="ContextParties" ComponentType="ImplicitBlockRepeating" Category="PartiesReferenceData" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="ContextPartiesElements" />
    </xs:sequence>
    <xs:attributeGroup ref="ContextPartiesAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Sub nsA:Sub 0 unbounded
<xs:group> nsA:ContextPartiesElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID Optional
Src nsA:Src Optional
R nsA:R Optional
Collapse Derivation Tree:
Collapse References:
nsA:CntxtPty
