Documentation for Financial Information eXchange (FIX)
Definition Type: Group
Name: DerivativeInstrumentElements
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-components-base-5-0-SP2.xsd

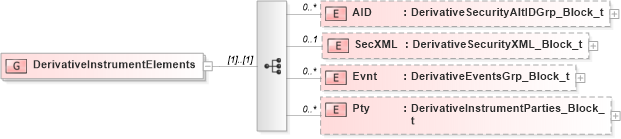

Collapse XSD Schema Diagram:
Drilldown into Pty in schema fixml-components-base-5-0-sp2_xsd Drilldown into Evnt in schema fixml-components-base-5-0-sp2_xsd Drilldown into SecXML in schema fixml-components-base-5-0-sp2_xsd Drilldown into AID in schema fixml-components-base-5-0-sp2_xsdXSD Diagram of DerivativeInstrumentElements in schema fixml-components-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:group name="DerivativeInstrumentElements">
    <xs:sequence>
        <xs:element name="AID" type="DerivativeSecurityAltIDGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="SecXML" type="DerivativeSecurityXML_Block_t" minOccurs="0" maxOccurs="1" />
        <xs:element name="Evnt" type="DerivativeEventsGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="Pty" type="DerivativeInstrumentParties_Block_t" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AID nsA:AID 0 unbounded
SecXML nsA:SecXML 0 1
Evnt nsA:Evnt 0 unbounded
Pty nsA:Pty 0 unbounded
