Definition Type: Element
Name: DsplyInstr
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:DisplayInstruction_Block_t
Containing Schema: fixml-tradecapture-base-5-0-SP2.xsd
MinOccurs 0
MaxOccurs 1
Abstract

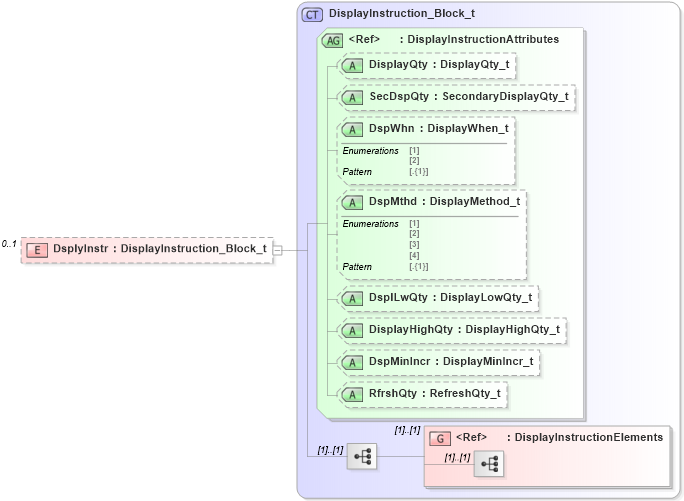

Collapse XSD Schema Diagram:
Drilldown into DisplayInstructionElements in schema fixml-components-base-5-0-sp2_xsd Drilldown into RfrshQty in schema fixml-components-base-5-0-sp2_xsd Drilldown into DspMinIncr in schema fixml-components-base-5-0-sp2_xsd Drilldown into DisplayHighQty in schema fixml-components-base-5-0-sp2_xsd Drilldown into DsplLwQty in schema fixml-components-base-5-0-sp2_xsd Drilldown into DspMthd in schema fixml-components-base-5-0-sp2_xsd Drilldown into DspWhn in schema fixml-components-base-5-0-sp2_xsd Drilldown into SecDspQty in schema fixml-components-base-5-0-sp2_xsd Drilldown into DisplayQty in schema fixml-components-base-5-0-sp2_xsd Drilldown into DisplayInstructionAttributes in schema fixml-components-base-5-0-sp2_xsd Drilldown into DisplayInstruction_Block_t in schema fixml-components-base-5-0-sp2_xsdXSD Diagram of DsplyInstr in schema fixml-tradecapture-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="DsplyInstr" type="DisplayInstruction_Block_t" minOccurs="0" maxOccurs="1" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:group> nsA:DisplayInstructionElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
DisplayQty nsA:DisplayQty Optional
SecDspQty nsA:SecDspQty Optional
DspWhn nsA:DspWhn Optional
DspMthd nsA:DspMthd Optional
DsplLwQty nsA:DsplLwQty Optional
DisplayHighQty nsA:DisplayHighQty Optional
DspMinIncr nsA:DspMinIncr Optional
RfrshQty nsA:RfrshQty Optional
Collapse Derivation Tree:
