Documentation for Financial Information eXchange (FIX)
Definition Type: SimpleType
Name: ExecInst_enum_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-fields-base-5-0-SP2.xsd
Documentation:
Instructions for order handling on exchange trading floor. If more than one instruction is applicable to an order, this field can contain multiple instructions separated by space. *** SOME VALUES HAVE BEEN REPLACED - See "Replaced Features and Supported Approach" *** (see Volume : "Glossary" for value definitions)
Collapse XSD Schema Diagram:

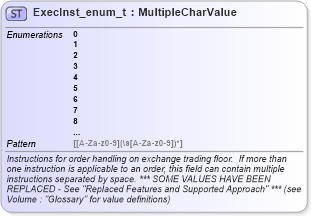

XSD Diagram of ExecInst_enum_t in schema fixml-fields-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:simpleType name="ExecInst_enum_t">
    <xs:annotation>
        <xs:documentation>Instructions for order handling on exchange trading floor.  If more than one instruction is applicable to an order, this field can contain multiple instructions separated by space. *** SOME VALUES HAVE BEEN REPLACED - See "Replaced Features and Supported Approach" *** (see Volume : "Glossary" for value definitions)</xs:documentation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="ExecInst" ComponentType="Field" Tag="18" Type="MultipleCharValue" AbbrName="ExecInst" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
        <xs:appinfo>
            <fm:EnumDoc value="0" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Stay on offer side</fm:EnumDoc>
            <fm:EnumDoc value="1" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Not held</fm:EnumDoc>
            <fm:EnumDoc value="2" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Work</fm:EnumDoc>
            <fm:EnumDoc value="3" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Go along</fm:EnumDoc>
            <fm:EnumDoc value="4" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Over the day</fm:EnumDoc>
            <fm:EnumDoc value="5" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Held</fm:EnumDoc>
            <fm:EnumDoc value="6" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Participant don't initiate</fm:EnumDoc>
            <fm:EnumDoc value="7" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Strict scale</fm:EnumDoc>
            <fm:EnumDoc value="8" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Try to scale</fm:EnumDoc>
            <fm:EnumDoc value="9" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Stay on bid side</fm:EnumDoc>
            <fm:EnumDoc value="A" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">No cross (cross is forbidden)</fm:EnumDoc>
            <fm:EnumDoc value="a" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Trailing Stop Peg</fm:EnumDoc>
            <fm:EnumDoc value="B" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">OK to cross</fm:EnumDoc>
            <fm:EnumDoc value="b" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Strict Limit (No price improvement)</fm:EnumDoc>
            <fm:EnumDoc value="c" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Ignore Price Validity Checks</fm:EnumDoc>
            <fm:EnumDoc value="C" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Call first</fm:EnumDoc>
            <fm:EnumDoc value="d" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Peg to Limit Price</fm:EnumDoc>
            <fm:EnumDoc value="D" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Percent of volume (indicates that the sender does not want to be all of the volume on the floor vs. a specific percentage)</fm:EnumDoc>
            <fm:EnumDoc value="E" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Do not increase - DNI</fm:EnumDoc>
            <fm:EnumDoc value="e" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Work to Target Strategy</fm:EnumDoc>
            <fm:EnumDoc value="F" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Do not reduce - DNR</fm:EnumDoc>
            <fm:EnumDoc value="G" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">All or none - AON</fm:EnumDoc>
            <fm:EnumDoc value="H" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Reinstate on system failure (mutually exclusive with Q and l)</fm:EnumDoc>
            <fm:EnumDoc value="I" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Institutions only</fm:EnumDoc>
            <fm:EnumDoc value="J" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Reinstate on Trading Halt (mutually exclusive with K and m)</fm:EnumDoc>
            <fm:EnumDoc value="K" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Cancel on Trading Halt (mutually exclusive with J and m)</fm:EnumDoc>
            <fm:EnumDoc value="L" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Last peg (last sale)</fm:EnumDoc>
            <fm:EnumDoc value="M" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Mid-price peg (midprice of inside quote)</fm:EnumDoc>
            <fm:EnumDoc value="N" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Non-negotiable</fm:EnumDoc>
            <fm:EnumDoc value="O" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Opening peg</fm:EnumDoc>
            <fm:EnumDoc value="P" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Market peg</fm:EnumDoc>
            <fm:EnumDoc value="Q" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Cancel on system failure (mutually exclusive with H and l)</fm:EnumDoc>
            <fm:EnumDoc value="R" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Primary peg (primary market - buy at bid/sell at offer)</fm:EnumDoc>
            <fm:EnumDoc value="S" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Suspend</fm:EnumDoc>
            <fm:EnumDoc value="U" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Customer Display Instruction (Rule 11Ac1-1/4)</fm:EnumDoc>
            <fm:EnumDoc value="V" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Netting (for Forex)</fm:EnumDoc>
            <fm:EnumDoc value="W" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Peg to VWAP</fm:EnumDoc>
            <fm:EnumDoc value="X" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Trade Along</fm:EnumDoc>
            <fm:EnumDoc value="Y" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Try To Stop</fm:EnumDoc>
            <fm:EnumDoc value="Z" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Cancel if not best</fm:EnumDoc>
            <fm:EnumDoc value="f" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Intermarket Sweep</fm:EnumDoc>
            <fm:EnumDoc value="j" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Single execution requested for block trade</fm:EnumDoc>
            <fm:EnumDoc value="g" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">External Routing Allowed</fm:EnumDoc>
            <fm:EnumDoc value="h" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">External Routing Not Allowed</fm:EnumDoc>
            <fm:EnumDoc value="i" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Imbalance Only</fm:EnumDoc>
            <fm:EnumDoc value="T" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Fixed Peg to Local best bid or offer at time of order</fm:EnumDoc>
            <fm:EnumDoc value="k" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Best Execution</fm:EnumDoc>
            <fm:EnumDoc value="l" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Suspend on system failure (mutually exclusive with H and Q)</fm:EnumDoc>
            <fm:EnumDoc value="m" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Suspend on Trading Halt (mutually exclusive with J and K)</fm:EnumDoc>
            <fm:EnumDoc value="n" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Reinstate on connection loss (mutually exclusive with o and p)</fm:EnumDoc>
            <fm:EnumDoc value="o" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Cancel on connection loss (mutually exclusive with n and p)</fm:EnumDoc>
            <fm:EnumDoc value="p" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Suspend on connection loss (mutually exclusive with n and o)</fm:EnumDoc>
            <fm:EnumDoc value="q" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Release from suspension (mutually exclusive with S)</fm:EnumDoc>
            <fm:EnumDoc value="r" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Execute as delta neutral using volatility provided</fm:EnumDoc>
            <fm:EnumDoc value="s" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Execute as duration neutral</fm:EnumDoc>
            <fm:EnumDoc value="t" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Execute as FX neutral</fm:EnumDoc>
        </xs:appinfo>
    </xs:annotation>
    <xs:restriction base="MultipleCharValue">
        <xs:enumeration value="0" />
        <xs:enumeration value="1" />
        <xs:enumeration value="2" />
        <xs:enumeration value="3" />
        <xs:enumeration value="4" />
        <xs:enumeration value="5" />
        <xs:enumeration value="6" />
        <xs:enumeration value="7" />
        <xs:enumeration value="8" />
        <xs:enumeration value="9" />
        <xs:enumeration value="A" />
        <xs:enumeration value="a" />
        <xs:enumeration value="B" />
        <xs:enumeration value="b" />
        <xs:enumeration value="c" />
        <xs:enumeration value="C" />
        <xs:enumeration value="d" />
        <xs:enumeration value="D" />
        <xs:enumeration value="E" />
        <xs:enumeration value="e" />
        <xs:enumeration value="F" />
        <xs:enumeration value="G" />
        <xs:enumeration value="H" />
        <xs:enumeration value="I" />
        <xs:enumeration value="J" />
        <xs:enumeration value="K" />
        <xs:enumeration value="L" />
        <xs:enumeration value="M" />
        <xs:enumeration value="N" />
        <xs:enumeration value="O" />
        <xs:enumeration value="P" />
        <xs:enumeration value="Q" />
        <xs:enumeration value="R" />
        <xs:enumeration value="S" />
        <xs:enumeration value="U" />
        <xs:enumeration value="V" />
        <xs:enumeration value="W" />
        <xs:enumeration value="X" />
        <xs:enumeration value="Y" />
        <xs:enumeration value="Z" />
        <xs:enumeration value="f" />
        <xs:enumeration value="j" />
        <xs:enumeration value="g" />
        <xs:enumeration value="h" />
        <xs:enumeration value="i" />
        <xs:enumeration value="T" />
        <xs:enumeration value="k" />
        <xs:enumeration value="l" />
        <xs:enumeration value="m" />
        <xs:enumeration value="n" />
        <xs:enumeration value="o" />
        <xs:enumeration value="p" />
        <xs:enumeration value="q" />
        <xs:enumeration value="r" />
        <xs:enumeration value="s" />
        <xs:enumeration value="t" />
    </xs:restriction>
</xs:simpleType>
Collapse Facets:
Facet Value
Enumeration 0
Enumeration 1
Enumeration 2
Enumeration 3
Enumeration 4
Enumeration 5
Enumeration 6
Enumeration 7
Enumeration 8
Enumeration 9
Enumeration A
Enumeration a
Enumeration B
Enumeration b
Enumeration c
Enumeration C
Enumeration d
Enumeration D
Enumeration E
Enumeration e
Enumeration F
Enumeration G
Enumeration H
Enumeration I
Enumeration J
Enumeration K
Enumeration L
Enumeration M
Enumeration N
Enumeration O
Enumeration P
Enumeration Q
Enumeration R
Enumeration S
Enumeration U
Enumeration V
Enumeration W
Enumeration X
Enumeration Y
Enumeration Z
Enumeration f
Enumeration j
Enumeration g
Enumeration h
Enumeration i
Enumeration T
Enumeration k
Enumeration l
Enumeration m
Enumeration n
Enumeration o
Enumeration p
Enumeration q
Enumeration r
Enumeration s
Enumeration t
Collapse Derivation Tree:
Collapse References:
nsA:ExecInst_t, nsA:ExecInstValue_t, nsA:LegExecInst_t
