Documentation for Financial Information eXchange (FIX)
Definition Type: SimpleType
Name: ExecType_enum_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-fields-base-5-0-SP2.xsd
Documentation:
Describes the specific ExecutionRpt (i.e. Pending Cancel) while OrdStatus (39) will always identify the current order status (i.e. Partially Filled) *** SOME VALUES HAVE BEEN REPLACED - See "Replaced Features and Supported Approach" ***

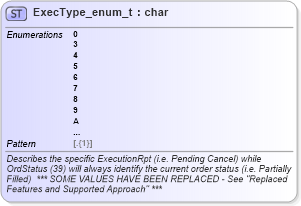

Collapse XSD Schema Diagram:
XSD Diagram of ExecType_enum_t in schema fixml-fields-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:simpleType name="ExecType_enum_t">
    <xs:annotation>
        <xs:documentation>Describes the specific ExecutionRpt (i.e. Pending Cancel) while OrdStatus (39) will always identify the current order status (i.e. Partially Filled)  *** SOME VALUES HAVE BEEN REPLACED - See "Replaced Features and Supported Approach" ***</xs:documentation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="ExecType" ComponentType="Field" Tag="150" Type="char" AbbrName="ExecTyp" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
        <xs:appinfo>
            <fm:EnumDoc value="0" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">New</fm:EnumDoc>
            <fm:EnumDoc value="3" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Done for day</fm:EnumDoc>
            <fm:EnumDoc value="4" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Canceled</fm:EnumDoc>
            <fm:EnumDoc value="5" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Replaced</fm:EnumDoc>
            <fm:EnumDoc value="6" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Pending Cancel (e.g. result of Order Cancel Request)</fm:EnumDoc>
            <fm:EnumDoc value="7" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Stopped</fm:EnumDoc>
            <fm:EnumDoc value="8" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Rejected</fm:EnumDoc>
            <fm:EnumDoc value="9" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Suspended</fm:EnumDoc>
            <fm:EnumDoc value="A" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Pending New</fm:EnumDoc>
            <fm:EnumDoc value="B" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Calculated</fm:EnumDoc>
            <fm:EnumDoc value="C" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Expired</fm:EnumDoc>
            <fm:EnumDoc value="D" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Restated (Execution Report sent unsolicited by sellside, with ExecRestatementReason (378) set)</fm:EnumDoc>
            <fm:EnumDoc value="E" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Pending Replace (e.g. result of Order Cancel/Replace Request)</fm:EnumDoc>
            <fm:EnumDoc value="F" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Trade (partial fill or fill)</fm:EnumDoc>
            <fm:EnumDoc value="G" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Trade Correct</fm:EnumDoc>
            <fm:EnumDoc value="H" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Trade Cancel</fm:EnumDoc>
            <fm:EnumDoc value="I" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Order Status</fm:EnumDoc>
            <fm:EnumDoc value="J" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Trade in a Clearing Hold</fm:EnumDoc>
            <fm:EnumDoc value="K" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Trade has been released to Clearing</fm:EnumDoc>
            <fm:EnumDoc value="L" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Triggered or Activated by System</fm:EnumDoc>
        </xs:appinfo>
    </xs:annotation>
    <xs:restriction base="char">
        <xs:enumeration value="0" />
        <xs:enumeration value="3" />
        <xs:enumeration value="4" />
        <xs:enumeration value="5" />
        <xs:enumeration value="6" />
        <xs:enumeration value="7" />
        <xs:enumeration value="8" />
        <xs:enumeration value="9" />
        <xs:enumeration value="A" />
        <xs:enumeration value="B" />
        <xs:enumeration value="C" />
        <xs:enumeration value="D" />
        <xs:enumeration value="E" />
        <xs:enumeration value="F" />
        <xs:enumeration value="G" />
        <xs:enumeration value="H" />
        <xs:enumeration value="I" />
        <xs:enumeration value="J" />
        <xs:enumeration value="K" />
        <xs:enumeration value="L" />
    </xs:restriction>
</xs:simpleType>
Collapse Facets:
Facet Value
Enumeration 0
Enumeration 3
Enumeration 4
Enumeration 5
Enumeration 6
Enumeration 7
Enumeration 8
Enumeration 9
Enumeration A
Enumeration B
Enumeration C
Enumeration D
Enumeration E
Enumeration F
Enumeration G
Enumeration H
Enumeration I
Enumeration J
Enumeration K
Enumeration L
Collapse Derivation Tree:
Collapse References:
nsA:ExecType_t
