Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: ExecutionAcknowledgementAttributes
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-order-base-5-0-SP2.xsd

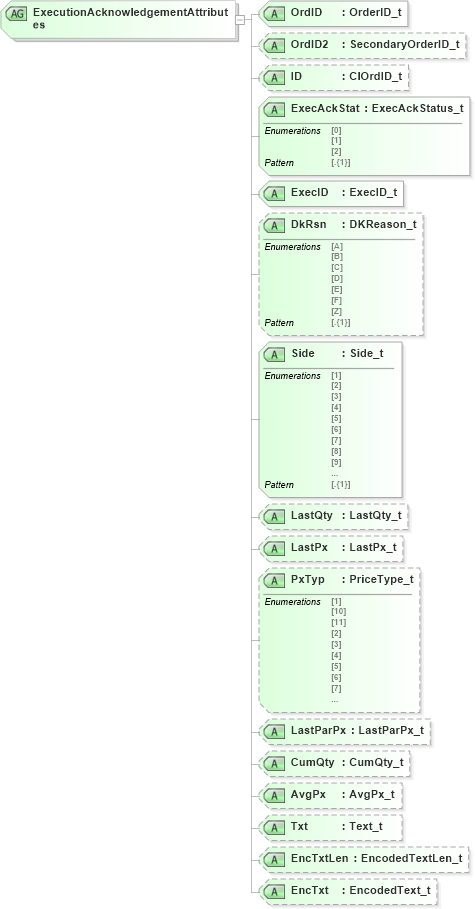

Collapse XSD Schema Diagram:
Drilldown into EncTxt in schema fixml-order-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-order-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-order-base-5-0-sp2_xsd Drilldown into AvgPx in schema fixml-order-base-5-0-sp2_xsd Drilldown into CumQty in schema fixml-order-base-5-0-sp2_xsd Drilldown into LastParPx in schema fixml-order-base-5-0-sp2_xsd Drilldown into PxTyp in schema fixml-order-base-5-0-sp2_xsd Drilldown into LastPx in schema fixml-order-base-5-0-sp2_xsd Drilldown into LastQty in schema fixml-order-base-5-0-sp2_xsd Drilldown into Side in schema fixml-order-base-5-0-sp2_xsd Drilldown into DkRsn in schema fixml-order-base-5-0-sp2_xsd Drilldown into ExecID in schema fixml-order-base-5-0-sp2_xsd Drilldown into ExecAckStat in schema fixml-order-base-5-0-sp2_xsd Drilldown into ID in schema fixml-order-base-5-0-sp2_xsd Drilldown into OrdID2 in schema fixml-order-base-5-0-sp2_xsd Drilldown into OrdID in schema fixml-order-base-5-0-sp2_xsdXSD Diagram of ExecutionAcknowledgementAttributes in schema fixml-order-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="ExecutionAcknowledgementAttributes">
    <xs:attribute name="OrdID" type="OrderID_t" use="required" />
    <xs:attribute name="OrdID2" type="SecondaryOrderID_t" use="optional" />
    <xs:attribute name="ID" type="ClOrdID_t" use="optional" />
    <xs:attribute name="ExecAckStat" type="ExecAckStatus_t" use="required" />
    <xs:attribute name="ExecID" type="ExecID_t" use="required" />
    <xs:attribute name="DkRsn" type="DKReason_t" use="optional" />
    <xs:attribute name="Side" type="Side_t" use="required" />
    <xs:attribute name="LastQty" type="LastQty_t" use="optional" />
    <xs:attribute name="LastPx" type="LastPx_t" use="optional" />
    <xs:attribute name="PxTyp" type="PriceType_t" use="optional" />
    <xs:attribute name="LastParPx" type="LastParPx_t" use="optional" />
    <xs:attribute name="CumQty" type="CumQty_t" use="optional" />
    <xs:attribute name="AvgPx" type="AvgPx_t" use="optional" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
OrdID nsA:OrdID Required
OrdID2 nsA:OrdID2 Optional
ID nsA:ID Optional
ExecAckStat nsA:ExecAckStat Required
ExecID nsA:ExecID Required
DkRsn nsA:DkRsn Optional
Side nsA:Side Required
LastQty nsA:LastQty Optional
LastPx nsA:LastPx Optional
PxTyp nsA:PxTyp Optional
LastParPx nsA:LastParPx Optional
CumQty nsA:CumQty Optional
AvgPx nsA:AvgPx Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
