Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: LegOrdGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-multilegorders-base-5-0-SP2.xsd
Abstract

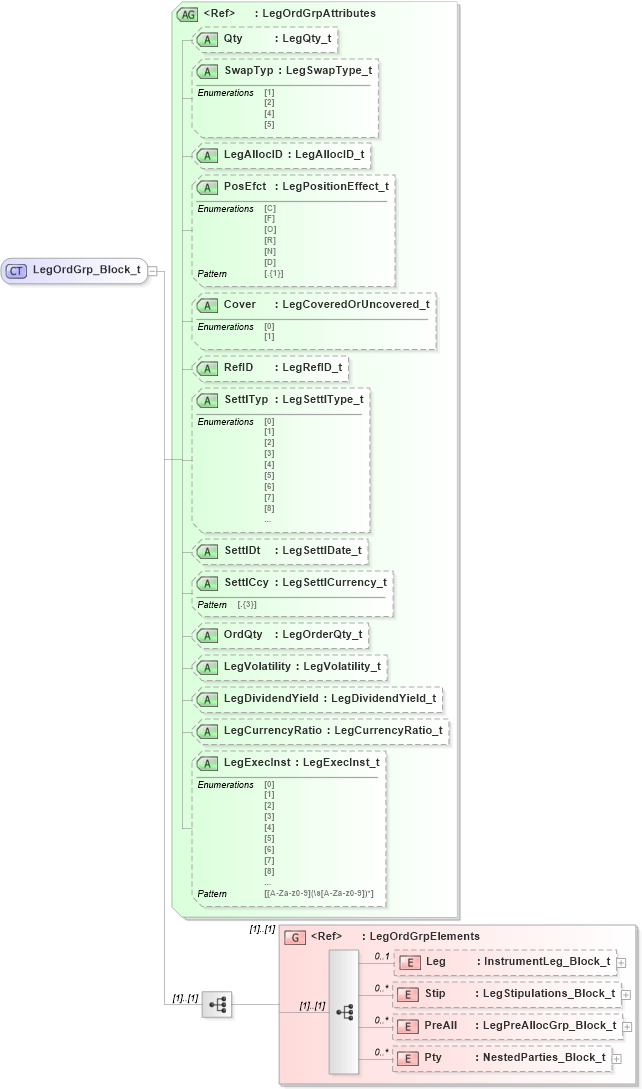

Collapse XSD Schema Diagram:
Drilldown into Pty in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into PreAll in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into Stip in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into Leg in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into LegOrdGrpElements in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into LegExecInst in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into LegCurrencyRatio in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into LegDividendYield in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into LegVolatility in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into OrdQty in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into SettlCcy in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into SettlDt in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into SettlTyp in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into RefID in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into Cover in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into PosEfct in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into LegAllocID in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into SwapTyp in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into Qty in schema fixml-multilegorders-base-5-0-sp2_xsd Drilldown into LegOrdGrpAttributes in schema fixml-multilegorders-base-5-0-sp2_xsdXSD Diagram of LegOrdGrp_Block_t in schema fixml-multilegorders-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="LegOrdGrp_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="LegOrdGrp" ComponentType="ImplicitBlockRepeating" Category="MultilegOrders" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="LegOrdGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="LegOrdGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Leg nsA:Leg 0 1
Stip nsA:Stip 0 unbounded
PreAll nsA:PreAll 0 unbounded
Pty nsA:Pty 0 unbounded
<xs:group> nsA:LegOrdGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Qty nsA:Qty Optional
SwapTyp nsA:SwapTyp Optional
LegAllocID nsA:LegAllocID Optional
PosEfct nsA:PosEfct Optional
Cover nsA:Cover Optional
RefID nsA:RefID Optional
SettlTyp nsA:SettlTyp Optional
SettlDt nsA:SettlDt Optional
SettlCcy nsA:SettlCcy Optional
OrdQty nsA:OrdQty Optional
LegVolatility nsA:LegVolatility Optional
LegDividendYield nsA:LegDividendYield Optional
LegCurrencyRatio nsA:LegCurrencyRatio Optional
LegExecInst nsA:LegExecInst Optional
Collapse Derivation Tree:
Collapse References:
nsA:Ord, nsA:Ord
