Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: LegQuotGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-quotation-base-5-0-SP2.xsd
Abstract

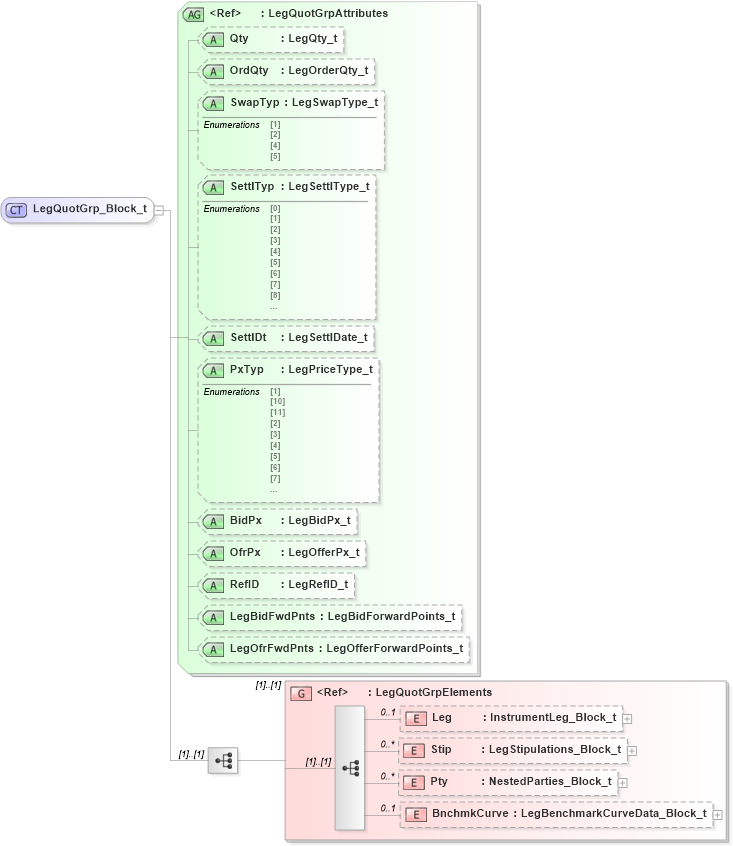

Collapse XSD Schema Diagram:
Drilldown into BnchmkCurve in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Pty in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Stip in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Leg in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into LegQuotGrpElements in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into LegOfrFwdPnts in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into LegBidFwdPnts in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into RefID in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into OfrPx in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into BidPx in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into PxTyp in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into SettlDt in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into SettlTyp in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into SwapTyp in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into OrdQty in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Qty in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into LegQuotGrpAttributes in schema fixml-quotation-base-5-0-sp2_xsdXSD Diagram of LegQuotGrp_Block_t in schema fixml-quotation-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="LegQuotGrp_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="LegQuotGrp" ComponentType="ImplicitBlockRepeating" Category="QuotationNegotiation" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="LegQuotGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="LegQuotGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Leg nsA:Leg 0 1
Stip nsA:Stip 0 unbounded
Pty nsA:Pty 0 unbounded
BnchmkCurve nsA:BnchmkCurve 0 1
<xs:group> nsA:LegQuotGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Qty nsA:Qty Optional
OrdQty nsA:OrdQty Optional
SwapTyp nsA:SwapTyp Optional
SettlTyp nsA:SettlTyp Optional
SettlDt nsA:SettlDt Optional
PxTyp nsA:PxTyp Optional
BidPx nsA:BidPx Optional
OfrPx nsA:OfrPx Optional
RefID nsA:RefID Optional
LegBidFwdPnts nsA:LegBidFwdPnts Optional
LegOfrFwdPnts nsA:LegOfrFwdPnts Optional
Collapse Derivation Tree:
Collapse References:
nsA:Quot, nsA:Quot
