Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: MktDataInc
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:MarketDataIncrementalRefresh_message_t
Containing Schema: fixml-marketdata-base-5-0-SP2.xsd
Abstract
Collapse XSD Schema Diagram:

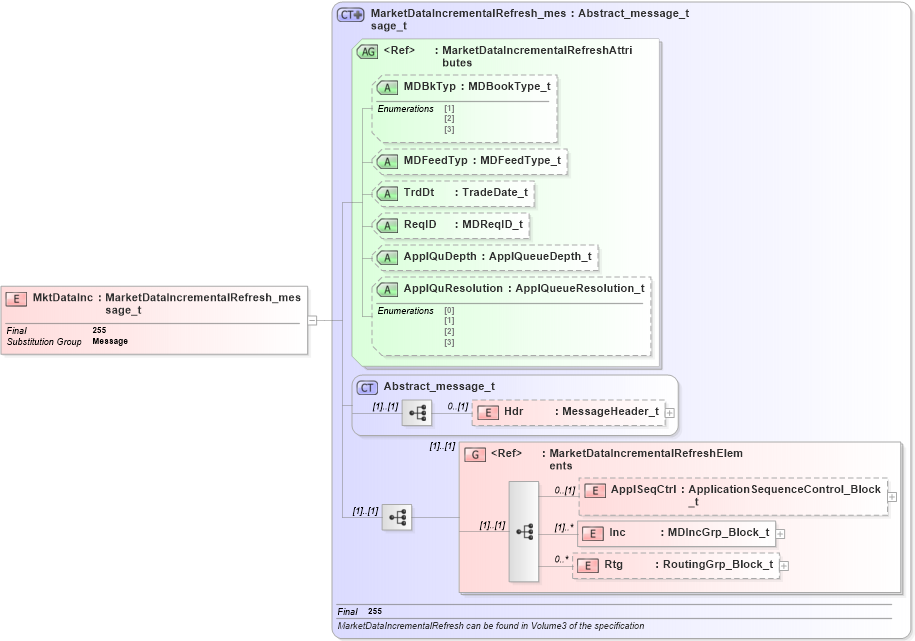

Drilldown into Rtg in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into Inc in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into ApplSeqCtrl in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into MarketDataIncrementalRefreshElements in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into Hdr in schema fixml-components-base-5-0-sp2_xsd Drilldown into Abstract_message_t in schema fixml-components-base-5-0-sp2_xsd Drilldown into ApplQuResolution in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into ApplQuDepth in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into ReqID in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into TrdDt in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into MDFeedTyp in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into MDBkTyp in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into MarketDataIncrementalRefreshAttributes in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into MarketDataIncrementalRefresh_message_t in schema fixml-marketdata-base-5-0-sp2_xsdXSD Diagram of MktDataInc in schema fixml-marketdata-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="MktDataInc" type="MarketDataIncrementalRefresh_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
ApplSeqCtrl nsA:ApplSeqCtrl 0 (1)
Inc nsA:Inc (1) unbounded
Rtg nsA:Rtg 0 unbounded
<xs:group> nsA:MarketDataIncrementalRefreshElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
MDBkTyp nsA:MDBkTyp Optional
MDFeedTyp nsA:MDFeedTyp Optional
TrdDt nsA:TrdDt Optional
ReqID nsA:ReqID Optional
ApplQuDepth nsA:ApplQuDepth Optional
ApplQuResolution nsA:ApplQuResolution Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
